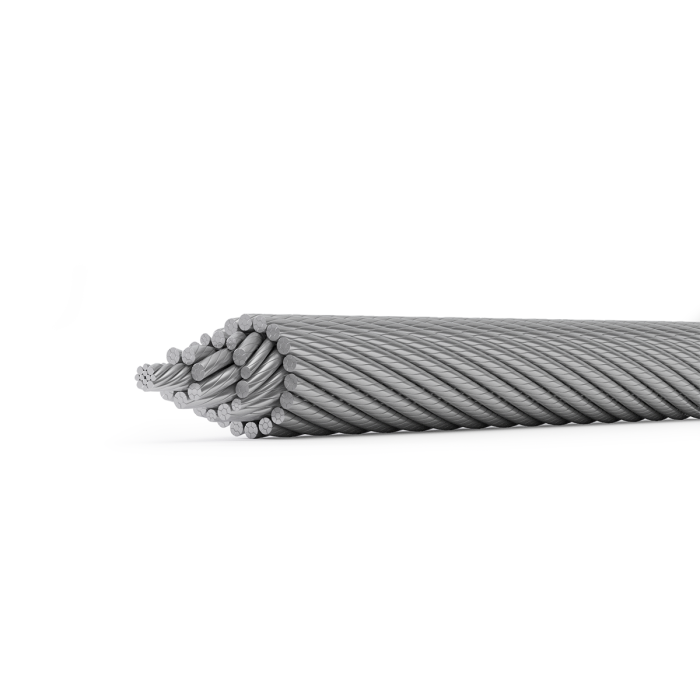

REDAELLI FLEXPACK

FLEXPACK, a non-rotating wire rope from Teufelberger-Redaelli, delivers state-of-the-art performance for Canadian industries requiring advanced rigging solutions. This World Record award-winning product combines axial and radial stiffness with flexibility, making it a go-to choice for high-performance applications.

Key Features:

• Construction: Compacted modular strands for optimal performance
• Lay Options: Ordinary lay, lang lay, right or left lay
• Diameter Range: 12 mm to 46 mm (1/2" to 1 3/4")
• Configurations:
  • 12-13 mm (1/2"): 27(W)xK7, RCN 23-2
  • 14-40 mm (9/16" - 1 9/16"): 34(W)xK7, RCN 23-2
  • 41-46 mm (1 5/8" - 1 3/4"): 39(W)xK7-WSC, RCN 23-3

Performance Characteristics:

• High wear resistance: Large wire diameter design
• Strength grades: Available in 1770 N/mm², 1960 N/mm², and 2160 N/mm²
• Minimum Breaking Force: Ranges from 120 kN to 1,922 kN (27,002 lbf to 432,043 lbf), depending on diameter and strength grade

Industry Applications:

• Offshore oil and gas operations
• Mining and excavation
• Construction and infrastructure projects
• Marine and port operations
• Forestry and logging

Technical Specifications:

• Weight: 0.70 kg/m to 10.30 kg/m (0.47 lbs/ft to 6.92 lbs/ft)
• Temperature Range: Consult manufacturer for specific operating conditions
• Working Load Limit: To be determined based on safety factor and application

FLEXPACK wire rope is engineered to meet the demands of Canadian industrial operations. Its non-rotating design minimizes torque and spin under load, while its compacted strand structure provides improved crushing resistance and increased surface area for reduced wear.

For detailed technical information, including full size range specifications and load capacities, refer to the product data sheet. To request a quote for FLEXPACK wire rope, click the 'Add to Quote' button on this page.
