PRODUCT CODE: GH | PART NUMBER: GPGH4

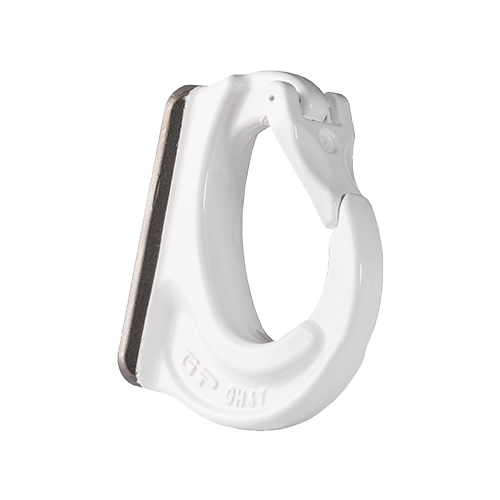

GREEN PIN WELD ON EXCAVATOR HOOK N/A (GPGH4)

The Green Pin® Excavator Hook (GPGH4) from Vancouver Rigging Supply Ltd. is a grade 8 hook designed for direct welding to bucket or crane loader booms. This 4 t working load limit hook offers robust functionality for Canadian industrial applications.

Key Specifications:

  • Working Load Limit: 4 t
  • Width (A): 4 3/4" (120.65 mm)
  • Length (B): 5 1/8" (130.18 mm)
  • Hook Opening (C): 1 3/8" (34.93 mm)
  • Thickness (D): 1 1/16" (26.99 mm)
  • Width (E): 1 13/32" (35.72 mm)
  • Length (F): 5 13/16" (147.64 mm)
  • Width (G): 1 9/16" (39.69 mm)
  • Width (H): 1 1/2" (38.1 mm)
  • Net Weight: 3.66 LBS (1.66 kg)

This excavator hook features a large surface with chamfer for straightforward and secure welding. A standard latch prevents unintended load release. Welding instructions accompany each hook to ensure proper installation.

Applications:

  • Construction: Attachment to excavator booms for material handling
  • Lifting Beams: Creation of custom lifting solutions when welded to beams
  • Mining: Heavy-duty load management in excavation projects
  • Forestry: Log handling and transportation

Safety Note: Lifting with excavator teeth is not permitted. Adhere to all safety guidelines and load limits.

For detailed product information and to request a quote, click the 'Add to Quote' button on this page.

Size (inches): N/A
Weight (lbs): 3.66

Working Load Limit (t): 4.0
