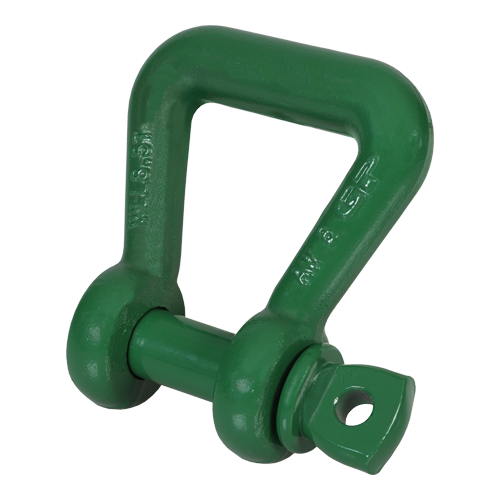

GREEN PIN WEB SLING SHACKLE WITH SCREW PIN N/A (POPWBB19)

The Green Pin® Web Sling Shackle SC (POPWBB19) from Vancouver Rigging Supply Ltd. serves as a connection point for synthetic round and flat web slings in lifting operations. This shackle features a 15/16" (24 mm) bow diameter and a 7/8" (22 mm) pin diameter, with an overall length of 4 3/16" (106 mm).

The shackle's design includes:

• Optimized crown surface for even load distribution
• Hidden screw thread to minimize web sling wear
• Smooth finish to reduce friction

With a net weight of 2.43 lb (1.1 kg), this shackle maintains a working load limit (WLL) between 3.25 t and 8.5 t, depending on the specific configuration. The product adheres to both EU and US standards for web sling compatibility.

Key measurements:

• Eye diameter: 1 13/16" (46 mm)
• Eye width: 3/4" (19 mm)
• Inside width: 1 1/4" (32 mm)
• Inside length: 1 7/8" (48 mm)
• Bow width: 1 13/16" (46 mm)
• Bolt length: 4 1/16" (103 mm)
• Overall width: 3 3/8" (86 mm)

Industries that commonly use this shackle include construction, manufacturing, and logistics. It is designed for use in lifting operations where synthetic slings are preferred over wire rope or chain slings.

To request pricing information for the Green Pin® Web Sling Shackle SC (POPWBB19), click the 'Add to Quote' button on this page.
