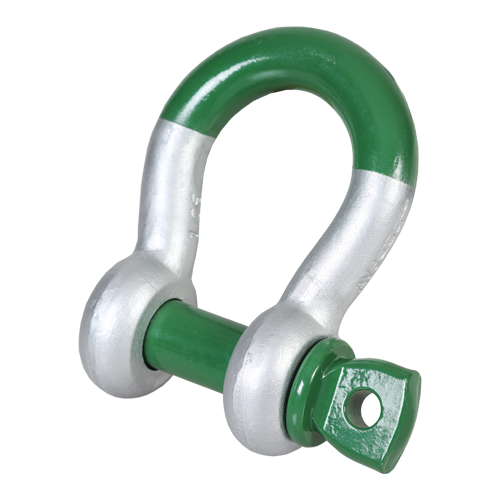

GREEN PIN SUPER BOW SHACKLE SCREW PIN 5/8” (SUGHBB16)

The Green Pin® Super Bow Shackle Screw Pin 5/8" (SUGHBB16) is a grade 8 alloy steel component designed for rigging applications across Canada. This G-5261 model, with our part number SUGHBB16, offers a working load limit range from 3.3t to 85t.

Key Specifications:

• Bow diameter: 5/8" (15.9 mm)
• Pin diameter: 3/4" (19.1 mm)
• Eye diameter: 1 9/16" (39.7 mm)
• Inside width: 1 1/16" (27 mm)
• Inside length: 2 17/32" (64.3 mm)
• Total length: 4 11/32" (110.3 mm)
• Bolt length: 3 1/2" (88.9 mm)
• Net weight: 1.38 LBS (0.63 kg)

Engineering Features:

• Material: Alloy steel, Grade 8, quenched and tempered
• Safety factor: Minimum breaking load equals 5 times the working load limit
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature range: -20°C to +200°C
• Screw pin design: Allows for assembly and disassembly in rigging operations
• Eye chamber: Conceals screw thread, reducing wear on wire ropes

Certifications and Standards:

• ASME B30.26 compliant
• Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B

Applications:

• Construction: Lifting and securing heavy materials
• Maritime operations: Cargo handling and mooring
• Oil and gas: Offshore rig equipment assembly
• Mining: Hoisting and conveying systems
• Forestry: Log transportation and processing

This Green Pin® Super Bow Shackle is engineered for use in Canadian industries where frequent assembly and disassembly of rigging components are required. Its galvanized finish provides protection against environmental factors, making it appropriate for outdoor and marine environments.

For procurement inquiries, use the 'Add to Quote' button to request pricing and availability information for the Green Pin® Super Bow Shackle Screw Pin 5/8" (SUGHBB16).
