PRODUCT CODE: P-6013 | PART NUMBER: SLGPF0007FN

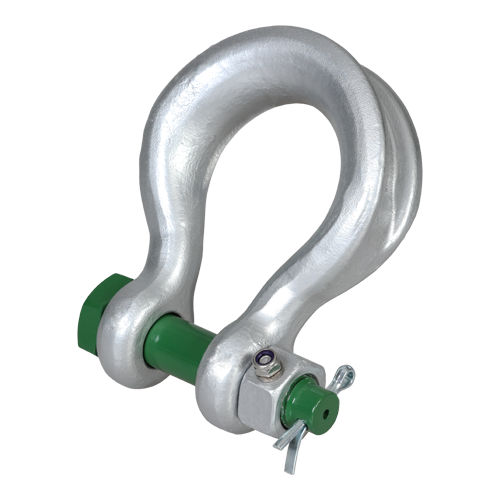

GREEN PIN SLING SHACKLE WITH SAFETY BOLT AND FIXED NUT 7/8" (SLGPF0007FN)

The Green Pin® Sling Shackle with Safety Bolt and Fixed Nut 7/8" (SLGPF0007FN) is a high-capacity bow shackle engineered for heavy lifting applications. This Canadian-distributed rigging component, part number P-6013, features a 7 t working load limit and a safety factor where the minimum breaking load is 5 times the working load limit.

Key Specifications:

  • Body diameter: 7/8" (22.2 mm)
  • Pin diameter: 7/8" (22.2 mm)
  • Eye diameter: 1 13/16" (46 mm)
  • Inside width: 1 9/32" (32.5 mm)
  • Inside length: 3 25/32" (96 mm)
  • Overall length: 6" (152.4 mm)
  • Net weight: 4.34 lbs (1.97 kg)

Construction and Performance:

  • Material: Alloy steel, Grade 8, quenched and tempered
  • Temperature range: -40°C to +200°C
  • Finish: Silver painted bow, green painted pin
  • Torque specification: 9.2 nm

The increased bow radius of this sling shackle reduces wear on wire ropes, allowing for the use of lighter cables in heavy lifting scenarios. Its triple safety feature—comprising a split pin, safety bolt, and fixed nut—makes it appropriate for loads subject to dynamic forces or extreme vibrations.

Applications:

  • Oil and gas operations
  • Construction projects
  • Marine lifting and towing
  • Mining operations
  • Heavy machinery transport

This Green Pin® product meets industry standards and comes with relevant certifications, including Lloyd's proofload test certificate for shackles rated at 75 t and above.

For pricing information on the Green Pin® Sling Shackle with Safety Bolt and Fixed Nut 7/8" (SLGPF0007FN), click the 'Add to Quote' button to request a quote tailored to your project requirements.

Size (inches): 7/8"
Weight (lbs): 4.34

Working Load Limit (t): 7.0
