PRODUCT CODE: P-6013 | PART NUMBER: SLGPF0012FN

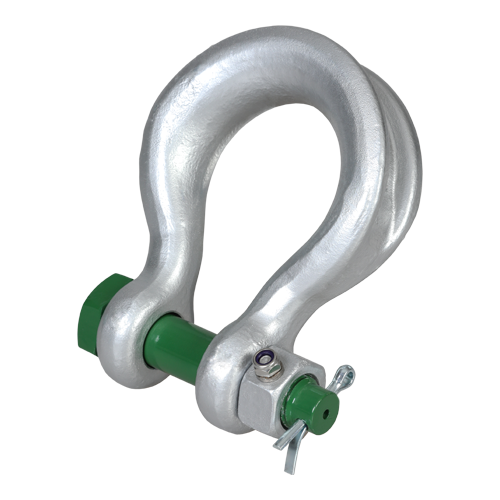

GREEN PIN SLING SHACKLE WITH SAFETY BOLT AND FIXED NUT 1-1/8" (SLGPF0012FN)

The Green Pin® Sling Shackle with Safety Bolt and Fixed Nut 1-1/8" (SLGPF0012FN) is a high-capacity bow shackle engineered for heavy lifting applications. This product, distributed by Vancouver Rigging Supply Ltd., is designed to meet the demanding requirements of Canadian industrial operations.

Key Specifications:

  • Working Load Limit: 12.5 t
  • Shackle Pin Weight: 4 lb (1.81 kg)
  • Body Diameter: 1 1/8" (28.58 mm)
  • Pin Diameter: 1 1/8" (28.58 mm)
  • Eye Diameter: 2 3/8" (60.33 mm)
  • Inside Width: 1 3/4" (44.45 mm)
  • Inside Length: 4 23/32" (119.86 mm)
  • Overall Length: 7 3/4" (196.85 mm)
  • Overall Width: 5 3/4" (146.05 mm)
  • Net Weight: 9.42 lb (4.27 kg)

Construction and Performance:

  • Material: Alloy steel, Grade 8, quenched and tempered
  • Safety Factor: Minimum Breaking Load is 5 times the Working Load Limit
  • Temperature Range: -40°C to +200°C
  • Finish: Silver painted bow, green painted pin

Safety Features:

  • Triple Safety Mechanism: Split pin, safety bolt, and fixed nut
  • Fixed Nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
  • Securing Bolt: M8 thread, 2" (50.8 mm) length
  • Torque Specification: 22 nm

Applications:

  • Heavy Lifting Projects: Construction, marine operations, oil and gas industry
  • Dynamic Load Environments: Offshore platforms, mining operations
  • Vibration-Prone Settings: Industrial machinery, transportation equipment

Certifications:

  • Lloyd's Proofload Test Certificate: Available for shackles 75 t and higher

This Green Pin® Sling Shackle is engineered to withstand dynamic loads and extreme vibrations, making it a fundamental component for rigging operations in Canada's industrial sectors. Its increased bow radius improves sling longevity and allows for the use of lighter wire rope without compromising load capacity.

For detailed pricing information and to procure this shackle for your operations, click the 'Add to Quote' button to initiate the quote request process with Vancouver Rigging Supply Ltd.

Size (inches): 1-1/8"
Weight (lbs): 9.42

Working Load Limit (t): 12.5
