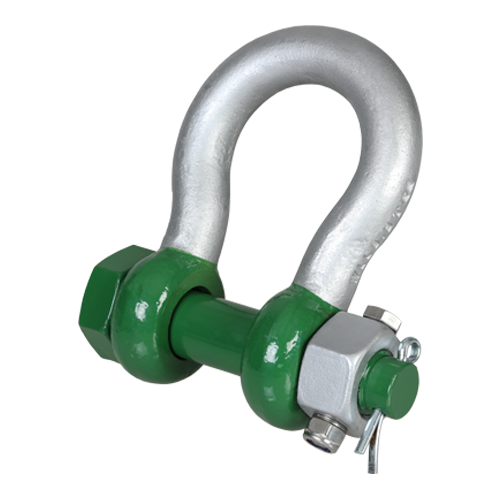

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 7/8” (POGHMB22FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB22FN) operates in temperatures as low as -60°C (-76°F), making it a pivotal component for Canadian industrial applications. This 7/8" shackle, part of Vancouver Rigging Supply Ltd.'s inventory, boasts a working load limit of 6.5 t, catering to substantial rigging requirements.

Key Specifications:

• Bow diameter: 7/8" (22 mm)
• Pin diameter: 1" (25 mm)
• Eye diameter: 2 1/16" (52 mm)
• Inside width: 1 13/32" (36 mm)
• Inside length: 3 9/32" (83 mm)
• Overall length: 5 21/32" (144 mm)
• Net weight: 3.9 lbs (1.77 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Securing bolt: M8 thread, 1 31/32" (50 mm) length
• Torque specification: 20 nm

Material and Finish:

• Construction: Alloy steel, Grade 8, quenched and tempered
• Surface treatment: Hot-dipped galvanized for corrosion resistance
• Temperature range: -60°C to +200°C

Certifications and Standards:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
• DNV GL

Applications:

• Arctic and subarctic industrial operations
• Offshore oil and gas platforms
• Maritime activities in cold waters
• Mining operations in northern regions
• Cold storage facilities

This Green Pin® Polar Bow Shackle is designed for use in one-leg and multi-leg rigging systems. Its construction addresses the challenges of dynamic loads and extreme vibrations, common in Canadian industrial environments.

For pricing information and to add this product to your quote, click the 'Add to Quote' button on this page.
