PRODUCT CODE: G-5143 | PART NUMBER: POGHMB16FN

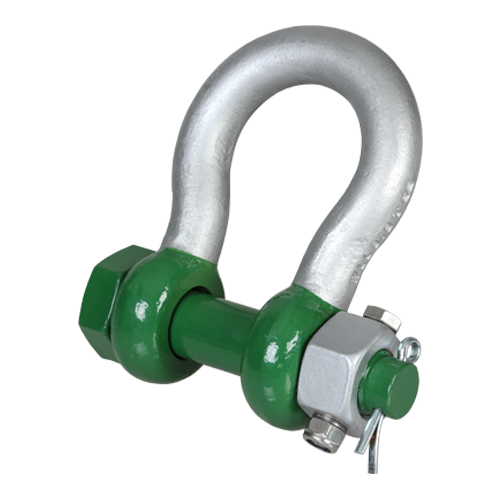

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 5/8” (POGHMB16FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB16FN) operates in temperatures as low as -60°C (-76°F), making it a standout choice for Canadian industrial applications. This 5/8" shackle, part of Vancouver Rigging Supply Ltd.'s inventory, boasts a working load limit of 3.25 t, catering to medium-duty lifting requirements.

Key Specifications:

  • Bow diameter: 5/8"
  • Pin diameter: 3/4"
  • Eye diameter: 1 9/16"
  • Inside width: 1 1/16"
  • Inside length: 2 17/32"
  • Overall length: 4 11/32"
  • Net weight: 1.63 lbs (0.74 kg)

Safety Features:

  • Triple safety mechanism: Split pin, safety bolt, and fixed nut
  • Fixed nut: Drilled through shackle nut and pin, secured with bolts and Nord-Lock® washers
  • Galvanized finish: Corrosion resistance for longevity

Certifications:

  • EN 13889
  • ASME B30.26
  • US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
  • DNV GL approval

Applications:

  • Offshore oil and gas operations
  • Arctic mining projects
  • Cold storage facilities
  • Winter construction sites

The Green Pin® Polar Bow Shackle withstands dynamic loads and vibrations, functioning in temperatures ranging from -60°C to 200°C. Its alloy steel construction (Grade 8, quenched and tempered) provides a safety factor where the minimum breaking load is 7 times the working load limit.

For precise installation, apply a torque of 8.4 nm to the M6 securing bolt. This shackle accommodates both single-leg and multi-leg rigging systems, offering flexibility in various lifting scenarios.

To inquire about the Green Pin® Polar Bow Shackle (POGHMB16FN) for your Canadian operations, click the 'Add to Quote' button to initiate a quote request with Vancouver Rigging Supply Ltd.

Size (inches): 5/8”
Weight (lbs): 1.63

Working Load Limit (t): 3-1/4
