PRODUCT CODE: G-5143 | PART NUMBER: POGHMB75FN

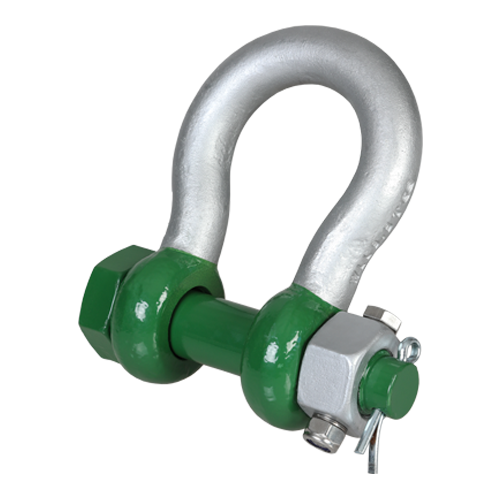

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 3" (POGHMB75FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB75FN) operates in temperatures as low as -60°C (-76°F), making it a solution for Canadian industries facing extreme cold. This 3" shackle, distributed by Vancouver Rigging Supply Ltd., offers a working load limit of 85 t, catering to heavy-duty applications across various sectors.

Key Specifications:

  • Bow diameter: 3"
  • Pin diameter: 3 1/4"
  • Eye diameter: 6 9/16"
  • Inside width: 5"
  • Inside length: 13"
  • Overall length: 20 7/8"
  • Bolt length: 15"
  • Net weight: 137 lbs (62 kg)

Engineering Features:

  • Triple safety mechanism: Split pin, safety bolt, and fixed nut
  • Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
  • Material: Alloy steel, Grade 8, quenched and tempered
  • Finish: Hot-dipped galvanized for corrosion resistance
  • Temperature range: -60°C to +200°C
  • Torque specification: 68 nm

Compliance and Standards:

  • EN 13889
  • ASME B30.26
  • US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
  • DNV GL certified

Applications:

  • Oil and gas operations in northern Canada
  • Arctic mining projects
  • Cold storage facilities
  • Winter construction sites

This Green Pin® Polar Bow Shackle is engineered for dynamic loads and extreme vibrations, making it applicable for offshore platforms, cranes, and heavy machinery operating in Canada's coldest regions. Its galvanized finish contributes to long-term durability in corrosive environments.

For pricing information on the Green Pin® Polar Bow Shackle (POGHMB75FN), click the 'Add to Quote' button to request a customized quote for your specific requirements.

Size (inches): 3"
Weight (lbs): 137.0

Working Load Limit (t): 85.0
