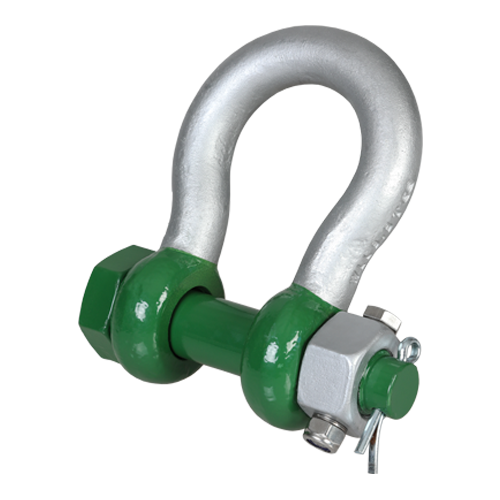

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 3/4” (POGHMB19FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB19FN) operates in temperatures as low as -60°C (-76°F), making it a go-to choice for Canadian industries facing extreme cold. This 3/4" shackle, part of Vancouver Rigging Supply Ltd.'s inventory, boasts a working load limit of 4.75 t, catering to heavy-duty applications across various sectors.

Key Specifications:

• Bow diameter: 3/4" (19 mm)
• Pin diameter: 7/8" (22 mm)
• Eye diameter: 1 13/16" (46 mm)
• Inside width: 1 7/32" (31 mm)
• Inside length: 3" (76 mm)
• Overall length: 5 3/32" (129 mm)
• Net weight: 2.61 lbs (1.18 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Securing bolt: M6 thread, 1 25/32" (45 mm) length
• Torque specification: 8.4 nm

Construction and Performance:

• Material: Alloy steel, Grade 8, quenched and tempered
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature range: -60°C to +200°C
• Safety factor: Minimum breaking load (MBL) equals 7 times WLL

Compliance and Certifications:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
• DNV GL certified

Applications:

• Offshore oil and gas operations in the Canadian Arctic
• Winter construction projects across Canada
• Cold storage facilities and refrigerated transport
• Mining operations in northern territories

This Green Pin® Polar Bow Shackle is designed for both single-leg and multi-leg rigging systems. Its construction allows for use in dynamic load situations and environments with extreme vibrations. To acquire this product for your Canadian operations, click the 'Add to Quote' button for a tailored pricing quote.
