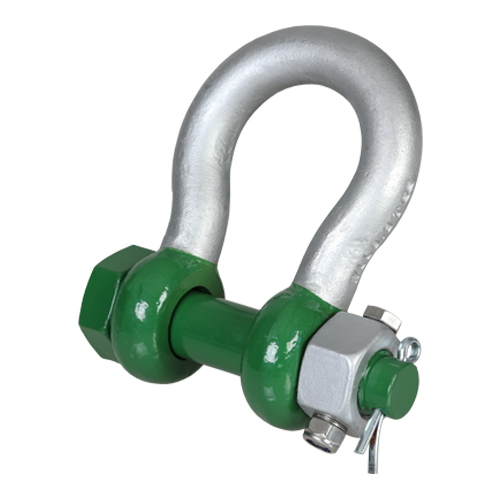

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 2” (POGHMB50FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB50FN) operates in temperatures as low as -60°C (-76°F), making it a robust solution for Canadian industrial applications. This 2" shackle, part of Vancouver Rigging Supply Ltd.'s inventory, boasts a Working Load Limit (WLL) of 35 t, catering to heavy-duty rigging needs across various sectors.

Key Specifications:

• Bow diameter: 2"
• Pin diameter: 2 1/4"
• Eye diameter: 4 13/32"
• Inside width: 3 9/32"
• Inside length: 7 3/4"
• Overall length: 13 1/16"
• Overall width: 9 3/8"
• Net weight: 43.8 lbs (19.9 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Securing bolt: M10 thread, 3 15/16" length
• Torque specification: 39 nm

Material and Finish:

• Composition: Alloy steel, Grade 8, quenched and tempered
• Surface treatment: Hot-dipped galvanized for corrosion resistance
• Temperature range: -60°C to +200°C

Certifications and Standards:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
• DNV GL certified

Applications:

• Offshore oil and gas operations
• Arctic shipping and marine industries
• Cold storage facilities
• Winter construction projects
• Mining operations in northern regions

This Green Pin® Polar Bow Shackle is engineered for use in one-leg and multi-leg rigging systems. Its design addresses the challenges of dynamic loads and extreme vibrations, common in industrial environments across Canada. For pricing information on this POGHMB50FN shackle, click the 'Add to Quote' button to initiate a quote request with Vancouver Rigging Supply Ltd.
