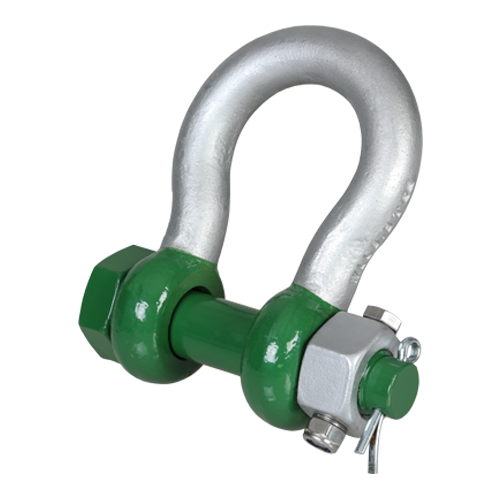

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 2-1/4" (POGHMB57FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB57FN) operates in temperatures as low as -60°C (-76°F), making it an engineering solution for Canadian industrial applications. This 2-1/4" shackle, part of Vancouver Rigging Supply Ltd.'s inventory, delivers a working load limit of 42.5 t.

Key Specifications:

• Bow diameter: 2 1/4"
• Pin diameter: 2 9/16"
• Eye diameter: 5 3/16"
• Inside width: 3 3/4"
• Inside length: 8 3/4"
• Overall length: 14 7/8"
• Bolt length: 11 27/32"
• Overall width: 10 25/32"
• Nut thickness: 1 5/32"
• Net weight: 62.5 lbs (28.3 kg)

Technical Features:

• Securing bolt thread: M12
• Securing bolt length: 4 11/32"
• Torque: 68 nm
• Temperature range: -60°C to +200°C

Manufactured from alloy steel (Grade 8, quenched and tempered), this shackle undergoes hot-dip galvanization for corrosion resistance. Its design incorporates a safety bolt and fixed nut, providing triple safety measures for dynamic loads and vibration-intensive environments.

Certifications and Standards:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
• DNV GL

Applications:

• Arctic and subarctic rigging operations
• Offshore oil and gas platforms
• Marine and shipping industry
• Mining operations in cold climates
• Construction projects in extreme environments

This Green Pin® Polar Bow Shackle is compatible with both single-leg and multi-leg rigging systems. For procurement inquiries, select the 'Add to Quote' button to initiate the quotation process with Vancouver Rigging Supply Ltd.
