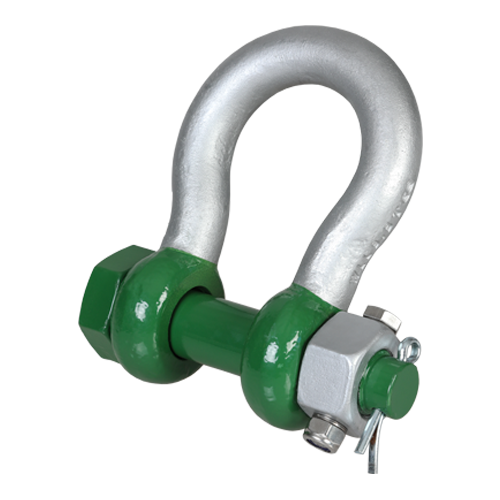

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 1” (POGHMB25FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB25FN) is engineered for low-temperature operations, functioning effectively down to -60°C (-76°F). This 1" shackle, distributed by Vancouver Rigging Supply Ltd., offers a working load limit of 8.5 t, catering to Canadian industries requiring cold-resistant rigging solutions.

Key Specifications:

• Bow diameter: 1"
• Pin diameter: 1 1/8"
• Eye dimensions: 2 5/16" diameter, 31/32" width
• Interior measurements: 1 11/16" width, 3 3/4" length
• Overall dimensions: 6 15/32" length, 4 21/32" width
• Bolt specifications: M8 thread, 5 29/32" length
• Net weight: 5.69 lbs (2.58 kg)

Design Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, secured with bolts and Nord-Lock® washers
• Material: Alloy steel, Grade 8, quenched and tempered
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature range: -60°C to +200°C

Applications:

• Arctic and sub-arctic industrial operations
• Offshore oil and gas platforms
• Cold storage facilities
• Winter construction projects

Compliance and Standards:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
• DNV GL certification

This shackle is designed for both single-leg and multi-leg rigging systems. Its safety factor provides a minimum breaking load of 7 times the working load limit. To acquire this Green Pin® Polar Bow Shackle for your Canadian operations, select the "Add to Quote" button for pricing information.
