PRODUCT CODE: G-5143 | PART NUMBER: POGHMB13FN

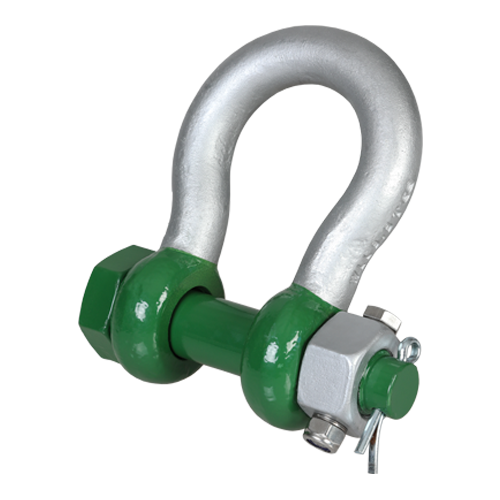

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 1/2” (POGHMB13FN)
The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB13FN) is engineered for operations in temperatures as low as -60°C (-76°F). This 1/2" shackle, distributed by Vancouver Rigging Supply Ltd., is designed for Canadian industrial applications requiring robust rigging solutions.
Key Specifications:
- Working Load Limit: 2 t
- Bow Diameter: 1/2" (13 mm)
- Pin Diameter: 5/8" (16 mm)
- Eye Diameter: 1 11/32" (34 mm)
- Inside Width: 7/8" (22 mm)
- Inside Length: 2" (51 mm)
- Overall Length: 3 17/32" (90 mm)
- Bolt Length: 3 5/32" (80 mm)
- Width: 2 5/16" (59 mm)
- Nut Thickness: 1/2" (13 mm)
- Net Weight: 0.93 lbs (0.42 kg)
Technical Features:
- Material: Alloy steel, Grade 8, quenched and tempered
- Finish: Hot-dipped galvanized for corrosion resistance
- Temperature Range: -60°C to +200°C
- Safety Factor: Minimum Breaking Load (MBL) equals 7 times Working Load Limit (WLL)
- Securing Bolt: M6 thread, 1 3/8" (35 mm) length
- Torque Specification: 8.4 nm
Certifications and Standards:
- EN 13889
- ASME B30.26
- US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)
- DNV GL
Applications:
- Arctic and sub-arctic oil and gas operations
- Cold storage facilities
- Winter construction projects
- Ice road transportation
- Cold climate mining operations
The Green Pin® Polar Bow Shackle with Fixed Nut features a triple safety mechanism, including a split pin, safety bolt, and fixed nut. This design addresses the challenges of dynamic loads and extreme vibrations in cold environments. The fixed nut is secured to the pin head using bolts and Nord-Lock® washers, ensuring long-term stability.
For precise specifications and availability of the Green Pin® Polar Bow Shackle (POGHMB13FN), click the 'Add to Quote' button to request detailed information from Vancouver Rigging Supply Ltd.
Size (inches): 1/2”
Weight (lbs): 0.93
Working Load Limit (t): 2.0
