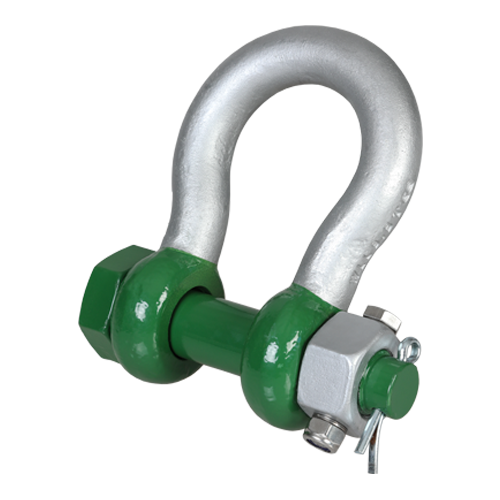

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 1-1/8” (POGHMB28FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB28FN) is engineered for operations in temperatures as low as -60°C (-76°F). This 1-1/8" shackle, distributed by Vancouver Rigging Supply Ltd., offers a working load limit of 9.5 t, making it suitable for heavy-duty applications across Canada.

Key Specifications:

• Bow diameter: 1 1/8"
• Pin diameter: 1 1/4"
• Eye diameter: 2 5/8"
• Inside width: 1 27/32"
• Inside length: 4 1/4"
• Overall length: 7 5/16"
• Net weight: 8.07 lbs (3.66 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Galvanized finish: For corrosion resistance

Applications:

• Arctic and sub-arctic rigging operations
• Offshore oil and gas platforms
• Marine and naval applications
• Cold storage facilities

Certifications: Meets EN 13889, ASME B30.26, and US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A requirements. DNV GL certified.

This Green Pin® Polar Bow Shackle is constructed from alloy steel, Grade 8, quenched and tempered. It maintains functionality in temperatures ranging from -60°C to +200°C. The product code G-5143 ensures traceability and quality assurance.

For pricing information on this cold-resistant rigging component, click the 'Add to Quote' button to submit an inquiry.
