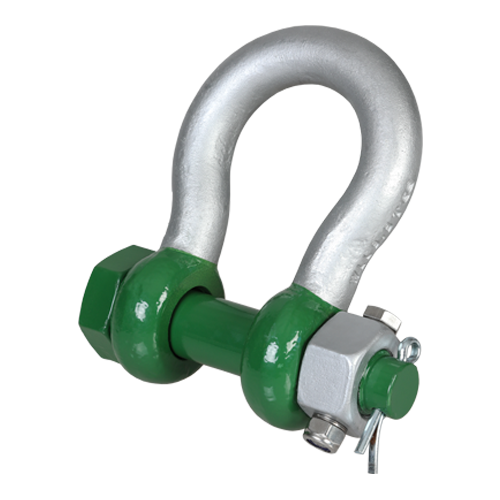

GREEN PIN POLAR BOW SHACKLE WITH FIXED NUT ( -60 C ) 1-1/2” (POGHMB38FN)

The Green Pin® Polar Bow Shackle with Fixed Nut (POGHMB38FN) is engineered for operations in temperatures as low as -60°C (-76°F). This 1-1/2" shackle, distributed by Vancouver Rigging Supply Ltd., offers a working load limit of 17 t, making it suitable for heavy-duty applications across Canada.

Key Specifications:

• Bow diameter: 1 1/2"
• Pin diameter: 1 5/8"
• Eye diameter: 3 15/32"
• Inside width: 2 3/8"
• Inside length: 5 3/4"
• Overall length: 9 13/16"
• Bolt length: 7 15/16"
• Overall width: 6 7/8"
• Nut thickness: 3/4"
• Net weight: 18.1 lbs (8.21 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Securing bolt thread: M8
• Securing bolt length: 2 15/16"
• Torque: 20 nm

Construction and Performance:

• Materials: Alloy steel, Grade 8, quenched and tempered
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature range: -60°C to +200°C
• Safety factor: Minimum breaking load (MBL) equals 7 times the working load limit (WLL)

Certifications:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (performance requirements)

Applications:

• Oil and gas operations in Arctic regions
• Mining activities in Northern Canada
• Construction projects in cold climates
• Marine and offshore installations

This Green Pin® Polar Bow Shackle is designed for use in both single-leg and multi-leg rigging systems. Its fixed nut is secured to the pin head with bolts and Nord-Lock® washers, providing additional stability under dynamic loads and vibrations.

For pricing and availability of the Green Pin® Polar Bow Shackle (POGHMB38FN), click the 'Add to Quote' button to request a detailed quote.
