PRODUCT CODE: P-6625 | PART NUMBER: PK007EU

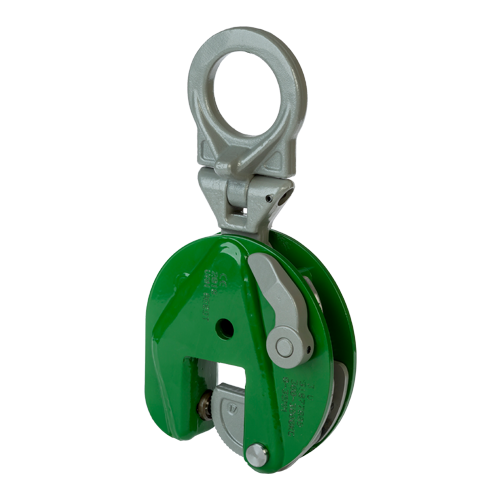

GREEN PIN LIFTING CLAMP U-TYPE 0-13 (PK007EU)

The Green Pin® Lifting Clamp U-type PK007EU (Vancouver Rigging Supply Ltd. Part Number: P-6625) is a plate clamp engineered for lifting and horizontal transportation tasks. This 0.75 t capacity clamp is designed for both inline and side loading applications, featuring a plate-locking system for operational safety.

Key specifications include:

  • Working Load Limit: 0.75 t
  • Width Opening: 0 - 1/2" (0 - 12.7 mm)
  • Length Opening: 1 27/32" (46.8 mm)
  • Overall Length: 8" (203.2 mm)
  • Net Weight: 3.97 lbs (1.8 kg)

The clamp's dimensions are precisely engineered for specific applications:

  • Width: 1 15/32" (37.3 mm)
  • Inside Eye Diameter: 1 3/16" (30.2 mm)
  • Width F: 3 15/16" (100 mm)
  • Thickness G: 1 15/32" (37.3 mm)
  • Thickness H: 13/32" (10.3 mm)

This U-type lifting clamp is constructed to withstand demanding industrial environments. Its design makes it applicable for use in shipyards, construction sites, and manufacturing facilities across Canada. The clamp's structure allows for secure plate handling in vertical and horizontal orientations.

Industries that can benefit from the Green Pin® Lifting Clamp U-type include:

  • Shipbuilding
  • Steel fabrication
  • Heavy equipment manufacturing
  • Infrastructure projects

The product's coating contributes to its longevity in various environmental conditions. Its lightweight design facilitates handling during rigging setup and breakdown processes.

To inquire about the Green Pin® Lifting Clamp U-type for your Canadian operations, click the 'Add to Quote' button on this page.

Size (inches): 0-13
Weight (lbs): 4.29

Working Load Limit (t): 0.75
