PRODUCT CODE: G-6323 | PART NUMBER: SSGPMBGG3818

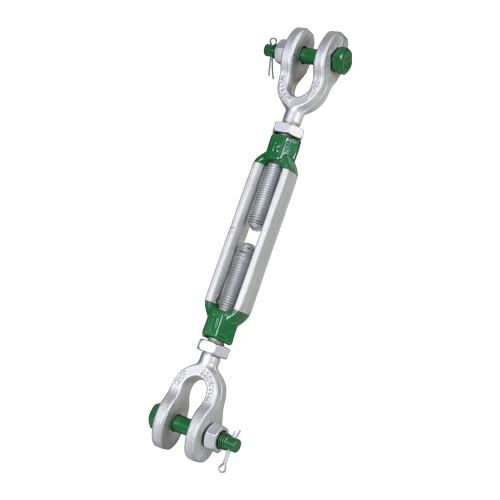

GREEN PIN JAW JAW TURNBUCKLE SAFETY BOLT 1-1/2" X 18” (SSGPMBGG3818)
The Green Pin® Jaw Jaw Turnbuckle Safety Bolt 1-1/2" x 18" (SSGPMBGG3818) is crafted to ASTM F1145-92 standards. Key features include:
- Jaw-jaw end-fitting with a double safety mechanism (cotter pin and safety bolt)
- Thread diameter: 1-1/2"
- Length (closed): 32-1/2"
- Length (open): 48-31/32"
- Jaw opening: 2-1/32"
- Inside length: 2-25/32"
- Pin diameter: 1-3/8"
- Jaw eye thickness: 1-1/8"
- Jaw eye diameter: 3-5/32"
- Net weight: 42.6 lbs
- Material: Drop forged high tensile steel SAE 1035 or 1045
- Safety factor: MBL equals 5 x WLL
- Finish: Hot dipped galvanized
- Temp range: -20°C to +200°C
- Certification: 2.1, 2.2, 3.1, MTCa, CE
With a 9.71t working load limit, it’s ideal for lifting and lashing tasks. Distributed in Canada for marine, offshore, and industrial applications.
Size (inches): 1-1/2" X 18”
Weight (lbs): 19.3
Working Load Limit (t): 9.71
