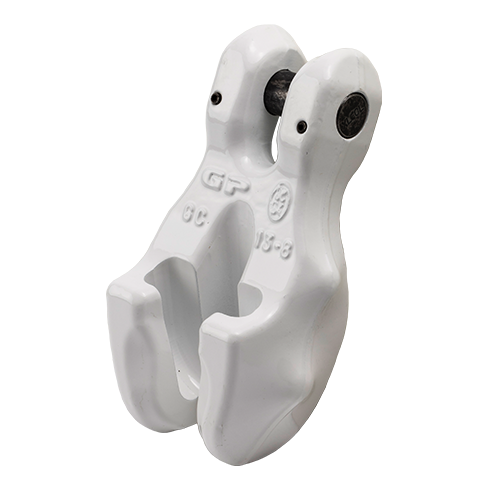

GREEN PIN GRADE 80 SHORTENING CLUTCH 1/4" - 5/16" (GPGC7/8)

The Green Pin® Shortening Clutch EN1677-1 (GPGC7/8) serves as a grade 8 component for chain slings, conforming to European standard EN 1677-1. This device, available through Vancouver Rigging Supply Ltd., enables precise adjustment of chain leg length, promoting load stability during lifting operations.

Key specifications include:

• Working Load Limit: 2 t
• Compatible Chain Diameter: 1/4" - 5/16" (6.35 mm - 7.94 mm)
• Overall Length: 3 11/16" (93.66 mm)
• Internal Width: 1 3/16" (30.16 mm)
• External Width: 1 31/32" (50.01 mm)
• Pin Diameter: 11/32" (8.73 mm)
• Net Weight: 0.98 lb (0.44 kg)

The GPGC7/8 clutch facilitates straight pulls, distinguishing it from shortening hooks. This characteristic proves advantageous in applications requiring direct force application, such as in construction, marine operations, and industrial manufacturing.

Industries benefiting from this product include:

• Construction: For adjusting chain slings in variable-height lifting scenarios
• Shipyards: In cargo handling and equipment maintenance
• Manufacturing: For positioning and transporting heavy machinery
• Oil and Gas: In rig assembly and maintenance operations

The Green Pin® Shortening Clutch EN1677-1 adheres to relevant safety standards and certifications, ensuring compliance with industry regulations. For detailed information on product availability and specifications, click the 'Add to Quote' button to initiate a quote request.
