PRODUCT CODE: CO | PART NUMBER: GPCO10

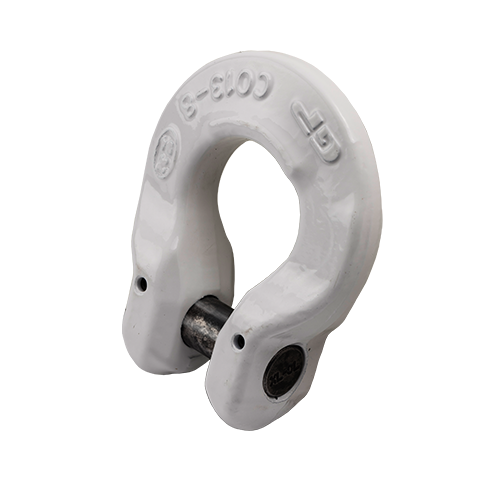

GREEN PIN GRADE 80 OMEGA LINK 3/8" (GPCO10)

The Green Pin® Omega Link EN1677-1 (GPCO10) serves as a crucial component for connecting chain to other rigging elements. This grade 8 omega link, conforming to EN 1677-1 standards, is designed for use with 3/8" (9.5 mm) chain diameter. With a working load limit of 3.2 t, it provides substantial capacity for various industrial applications.

Key dimensions of this omega link include:

  • Width (A): 3/4" (19 mm)
  • Pin diameter (B): 1/2" (12.7 mm)
  • Inside length (D): 1 9/16" (39.7 mm)
  • Outside length (F): 3 7/32" (81.8 mm)
  • Thickness (G): 21/32" (16.7 mm)

The GPCO10 omega link weighs 0.62 lbs (0.28 kg), balancing strength with manageable handling. Its compact design, with an outside width (H) of 2 15/32" (63 mm), allows for use in confined spaces while maintaining structural integrity.

This Green Pin® product finds applications in various Canadian industries, including:

  • Construction and infrastructure projects
  • Maritime and offshore operations
  • Mining and resource extraction
  • Manufacturing and industrial facilities

The omega link's design facilitates swift assembly and disassembly of rigging systems, contributing to operational workflow. Its adherence to EN 1677-1 standards ensures compatibility with other grade 8 components, supporting cohesive rigging solutions.

For procurement inquiries regarding the Green Pin® Omega Link EN1677-1 (GPCO10) for Canadian distribution, click the 'Add to Quote' button to initiate the quote request process.

Size (inches): 3/8"
Weight (lbs): 0.62

Working Load Limit (t): 3.2
