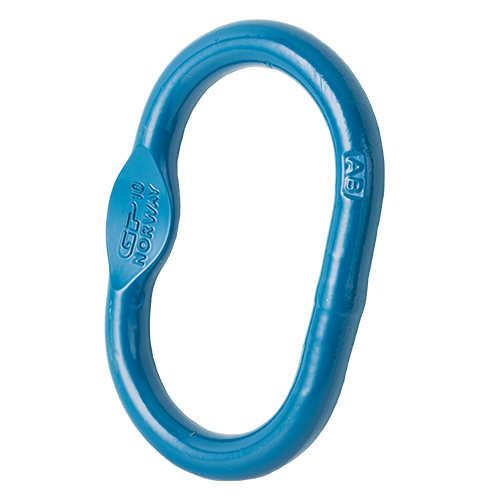

GREEN PIN GRADE 100 MASTER LINK 1" (GPUMS25)

The Green Pin^® Master Link, part number GPUMS25, is a grade 10 single master link designed for 1 or 2 leg sling applications. This welded single master link features a flat on the eye, enabling assembly with an omega link or on a thimble.

Key specifications of the Green Pin^® Master Link include:

• Working Load Limit: 11.2 t
• Diameter: 1" (25.4 mm)
• Length Inside: 7 15/32" (187.3 mm)
• Width Inside: 4 1/16" (102.4 mm)
• Thickness: 9/16" (14.3 mm)
• Net Weight: 4.79 lbs (2.17 kg)

The product is made from alloy steel, grade 10, quenched and tempered, with a safety factor of MBL equals 4 x WLL. The product is painted blue and comes with certifications 2.1, 2.2, 3.1, MTCb, and MPIa.

It is commonly used in various industries, including construction, mining, and oil and gas, for applications such as lifting, rigging, and load securement. Its design enables easy assembly and disassembly, making it a practical choice for companies requiring rigging products for their operations.

To request a quote for the Green Pin^® Master Link, part number GPUMS25, please click on the Add to Quote button.
