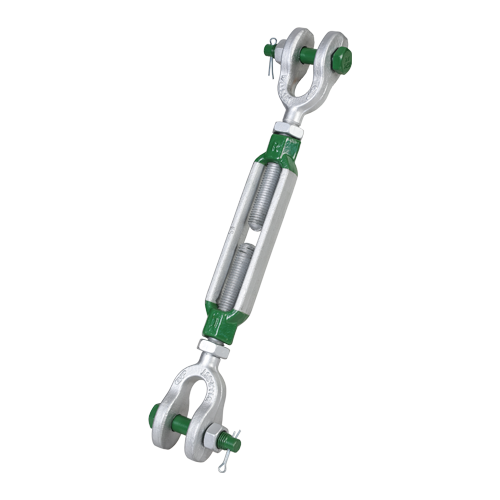

GREEN PIN EYE JAW TURNBUCKLE COTTER PIN OR SAFETY BOLT 3/4" X 9” (SSGPGO1909)

The Green Pin® Eye Jaw Turnbuckle SSGPGO1909 is versatile for lifting and lashing tasks. Key specifications include:

• Size: 3/4" x 9"
• WLL: 2.36t
• Material: Drop forged high tensile steel SAE 1035 or 1045
• Safety bolt for thread sizes up to 5/8", cotter pin for 3/4" and larger
• Galvanized for long-term durability
• Take up: 9"
• Thread diameter: 3/4"
• Length (closed): 18 3/8"
• Length (open): 26 3/32"
• Jaw opening: 15/16"
• Jaw inside length: 1 17/32"
• Jaw pin diameter: 5/8"
• Jaw eye thickness: 5/8"
• Jaw eye diameter: 1 5/8"
• Eye diameter: 11/16"
• Eye inside width: 1 1/32"
• Eye inside length: 2 1/8"
• Net weight: 6.23 lbs

Compliant with ASTM F1145-92, the turnbuckle is hot-dipped galvanized and suited for marine and industrial applications in Canada. It operates effectively in temperatures ranging from -20°C to +200°C and meets certifications 2.1, 2.2, 3.1, MTCa, and CE.
