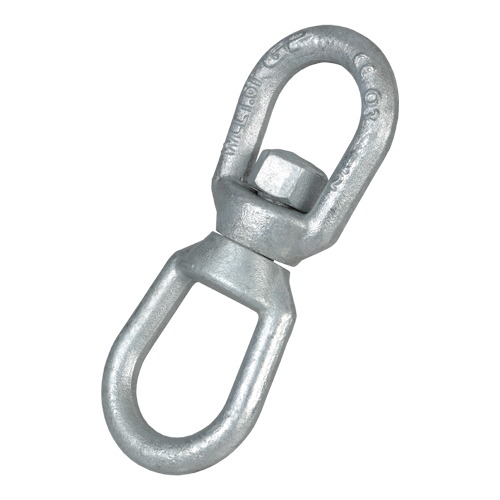

GREEN PIN EYE EYE SWIVEL 1-1/4" (WTGPOO32)

The Green Pin® Eye Eye Swivel 1-1/4" (WTGPOO32) is a high-tensile steel rigging component designed for underwater use. This G-7713 model, distributed by Vancouver Rigging Supply Ltd., offers a working load limit of 8.2 t, making it suitable for heavy-duty applications across Canadian industries.

Key Specifications:

• Diameter: 1 1/4" (31.75 mm)
• Overall Length: 14 1/16" (357.19 mm)
• Overall Width: 5 5/8" (142.88 mm)
• Internal Length: 2 11/16" (68.26 mm)
• Internal Width: 3 5/32" (80.17 mm)
• Body Length: 11 17/32" (292.89 mm)
• Net Weight: 18.7 lbs (8.48 kg)

Engineering Features:

• Material: High-tensile steel, quenched and tempered
• Finish: Hot-dip galvanized for corrosion resistance
• Safety Factor: Minimum breaking load is 5 times the working load limit
• Standard Compliance: U.S. Federal Specification RR-C-271, Type VII, Class 2

This Green Pin® Eye Eye Swivel finds applications in marine environments, offshore operations, and construction projects across Canada. Its design allows for 360-degree rotation, reducing twisting in rigging assemblies.

Industries utilizing this swivel include shipbuilding, oil and gas, wind energy, and heavy construction. The product's galvanized finish makes it resistant to environmental factors, extending its operational life in coastal and marine settings.

To obtain pricing information and place an order for the Green Pin® Eye Eye Swivel 1-1/4" (WTGPOO32), click the 'Add to Quote' button on this page.
