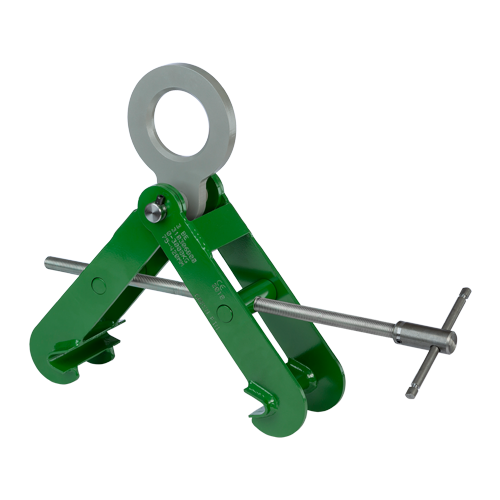

GREEN PIN BIGMOUTH BEAM LIFTING CLAMP H-TYPE 150-560 (PK040ESVS)

The Green Pin® BigMouth® Beam Lifting Clamp H-Type (PK040ESVS) is a specialized rigging component for horizontal transport of steel H-beams. This 4 t capacity clamp, available through Vancouver Rigging Supply Ltd., features a wider shackle mouth to accommodate larger connecting points.

Key specifications include:

• Working Load Limit: 4 t
• Net Weight: 39.7 lbs (18 kg)
• Jaw Opening A: 0 - 1 9/16" (0 - 40 mm)
• Jaw Opening B: 5 29/32" - 22 1/16" (150 - 560 mm)
• Length C: 27 7/8" (708 mm)
• Height D: 21 15/32" (545 mm)
• Eye Diameter E: 3 5/32" (80 mm)
• Width F: 7 3/32" (180 mm)
• Thickness G: 6 13/16" - 14 1/4" (173 - 362 mm)
• Width H: 1 9/16" (40 mm)

This H-type clamp employs a plate-locking system for secure beam engagement. Its design caters to industries such as construction, shipbuilding, and heavy manufacturing across Canada, where horizontal lifting of steel beams is common.

The clamp's sturdy construction and protective coating contribute to its longevity in various work environments. Its relatively light weight facilitates handling during rigging operations.

For pricing information on the Green Pin® BigMouth® Beam Lifting Clamp H-Type (PK040ESVS), click the 'Add to Quote' button to initiate a quote request with Vancouver Rigging Supply Ltd.
