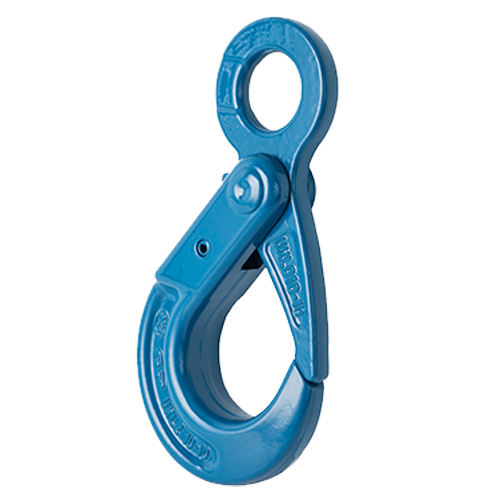

GRADE 100 EYE SELF LOCKING HOOK WITH RECESSED TRIGGER 3/4" (GPUXLO5RT)

The Green Pin® Self Locking Hook E RT GR10 (GPUXLO5RT) is a grade 10 eye self-locking hook designed for heavy-duty rigging applications across Canada. This hook features a recessed trigger mechanism that automatically locks when under tension, preventing unintended load release.

Key specifications include:

• Working Load Limit: 16 t
• For Chain Diameter: 3/4" (19.05 mm)
• Length: 11 5/32" (283 mm)
• Inside Eye Diameter: 2 3/4" (70 mm)
• Hook Opening: 3 17/32" (90 mm)
• Thickness: 2 1/16" (52 mm)
• Width: 2 7/16" (62 mm)
• Outside Width F: 4 31/32" (126 mm)
• Outside Width G: 8" (203 mm)
• Length H: 14 11/16" (373 mm)
• Width I: 1 3/32" (28 mm)
• Thickness J: 25/32" (20 mm)
• Net Weight: 20.3 LBS (9.21 kg)

This Green Pin® hook is compatible with grade 10 chain, webbing (using a web sling connector), and wire rope (with a thimble). The eye features a flat section for assembly with an omega link or thimble.

Industries that benefit from this hook include construction, mining, offshore operations, and heavy manufacturing across Canada. Its design addresses safety concerns in lifting operations where load security is paramount.

To obtain pricing information for the Green Pin® Self Locking Hook E RT GR10 (GPUXLO5RT), click the 'Add to Quote' button on this page.
