PRODUCT CODE: UMJ | PART NUMBER: GPUMJ10

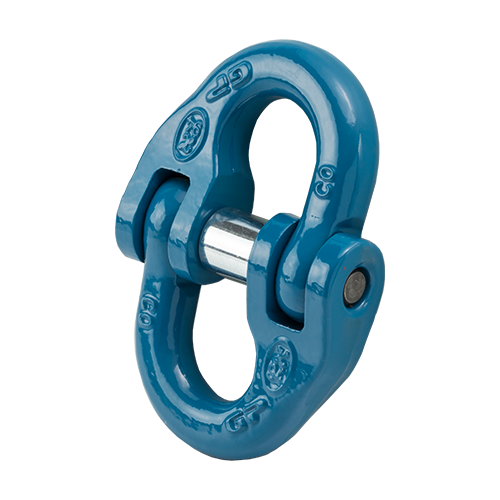

GRADE 100 CONNECTING LINKS 3/8” (GPUMJ10)

The Green Pin® Connecting Link GR10 (GPUMJ10) serves as a grade 10 connector for rigging applications across Canada. This 4 t (ton) working load limit component joins eye and eye swivel hooks and master links to grade 10 chains, offering a solution for industrial rigging needs.

Key Specifications:

  • Working Load Limit: 4 t
  • Chain Diameter Compatibility: 3/8" (9.5 mm)
  • Outside Width: 2 19/32" (65.9 mm)
  • Inside Width: 23/32" (18.3 mm)
  • Inside Length: 29/32" (23 mm)
  • Eye Diameter: 23/32" (18.3 mm)
  • Net Weight: 0.69 lb (313 g)

The GPUMJ10 features a spring bush design that maintains pin position within the connecting link halves. Its assembly requires only a hammer, aligning with engineering requirements for minimal tooling.

Applications:

  • Construction: Lifting and securing heavy materials
  • Maritime: Cargo handling and offshore operations
  • Manufacturing: Assembly line rigging and material transport
  • Mining: Equipment lifting and ore transportation

This Green Pin® product adheres to grade 10 chain standards, meeting the requirements for high-load applications in Canadian industries. Its design allows for use in temperatures common to various work environments across the country.

For procurement inquiries, select the 'Add to Quote' button to initiate a price request for the GPUMJ10 Connecting Link.

Size (inches): 3/8”
Weight (lbs): 0.69

Working Load Limit (t): 4.0
