VIPER MID MKII KIT 180KG - 4.5KG/MIN HIGH FLOW DRUM PUMP (VIPERMIDMKII180)

The Viper Mid MKII Kit 180kg - 4.5kg/min High Flow Drum Pump (Part Number: 3850006) is a wire rope lubrication system designed for efficient and effective lubrication of wire ropes with diameters ranging from 6mm to 67mm. This system is suitable for various industries, including wharf cranes, ship cranes, ROV cables, mine winders, mobile cranes, oil & gas platforms, anchor ropes, deck winches, overhead cranes, and ship loaders.

The Kit features a high-strength, cast aluminum collar with stainless steel hardware, providing maximum durability and corrosion protection. The kit includes a 4.5kg/min high-volume grease pump, air regulator/moisture trap with gauge and isolation valve, 4m high-pressure 1/2"" lube delivery hose, high-pressure lubricant metering valve, clear lube drain hose, retaining ratchet straps and shackles, and a robust aluminum storage case.

It is designed with safety and environmental considerations in mind. The system features a superior seal design, made from polyurethane with high abrasion resistance properties, which captures excess lubrication and contains it within a second seal chamber. The metal alloy scraper plate enables safe entry of broken wire ropes into the seal, preventing damage to the rope and seal.

This kit is supplied as a complete package, with all components required to get started. Seals and scrapers must be ordered separately to suit the specific rope size being lubricated.

Key Features:

• Wire Rope Diameter Range: 6mm to 67mm
• Lubrication Speed: Up to 2000m/hour
• Pump Flow Rate: 4.5kg/min
• Drum Size: 180kg
• Weight: Not specified

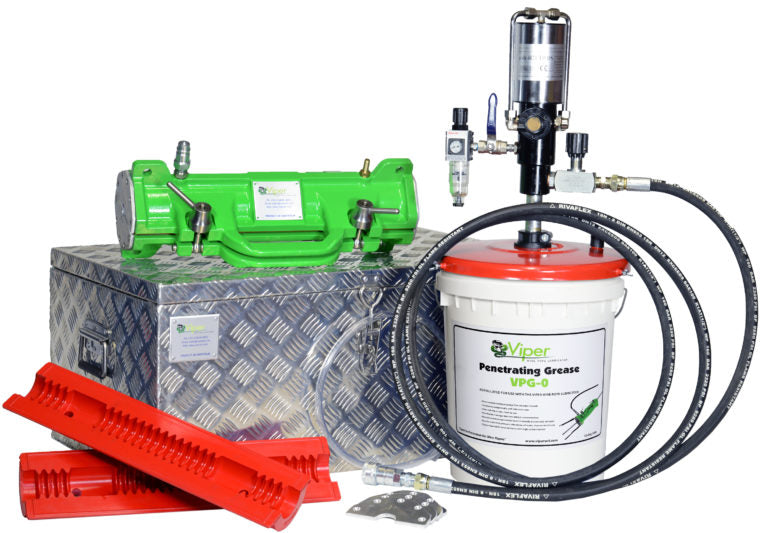

Kit Inclusions:

• Viper Mid MKII high-strength, cast aluminum collar
• 4.5kg/min high-volume grease pump
• Air regulator/moisture trap with gauge and isolation valve
• 4m high-pressure 1/2"" lube delivery hose
• High-pressure lubricant metering valve
• Clear lube drain hose
• Retaining ratchet straps and shackles
• Robust aluminum storage case

Additional Features:

• Superior seal design
• Metal alloy scraper plate

Notes:

• Seals and scrapers must be ordered separately

To request a quote for the Viper Mid MKII Kit 180kg - 4.5kg/min High Flow Drum Pump, please click the Add to Quote button.
