VIPER MAXI MKII KIT 180KG - 4.5KG/MIN HIGH FLOW DRUM PUMP (VIPERMAXI MKII)

The Viper Maxi MKII Kit 180KG - 4.5KG/MIN High Flow Drum Pump (VIPERMAXI MKII) provides wire rope lubrication capabilities for Canadian industrial applications.

This system lubricates wire ropes with diameters from 2"" to 6-1/2"" (50 mm to 165 mm). The kit's 45:1 high flow pump achieves lubrication speeds up to 6562 ft/h (2000 m/h) with a pump flow rate of 9.9 lb/min (4.5 kg/min), minimizing maintenance downtime.

Key features of the Viper Maxi MKII Kit include:

• Twin lubricant inlets for uniform application
• Metal alloy scraper plate for rope protection
• Superior seal design to contain excess lubricant
• 180 kg (397 lb) drum capacity for continuous operation

The kit is engineered for use with:

• ROV cables in underwater operations
• Vessel crane ropes for maritime applications
• Underwater offshore wire ropes in oil and gas sectors
• Drag lines for mining and excavation projects

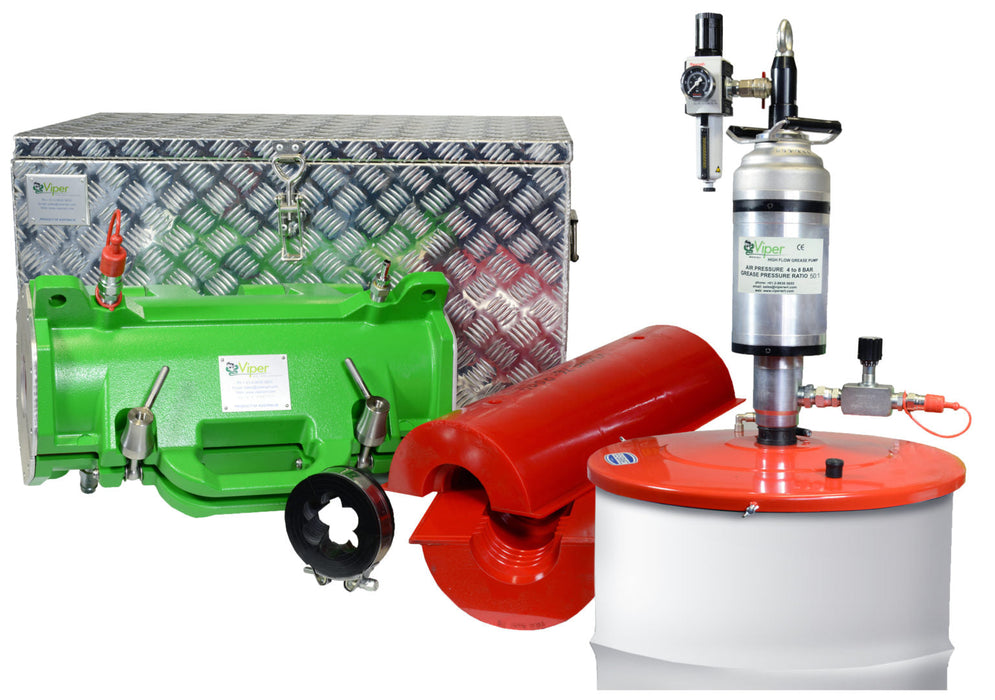

Included components:

• High-strength aluminum collar
• Air regulator for pressure adjustment
• 33 ft (10 m) high-pressure hose
• Clear lube drain hose for monitoring
• Two 13 ft (4 m) ratchet straps for mounting
• Aluminum storage case for transportation
• Grease flow control valve for application precision

Seals, scraper plates, and wire rope cleaners must be ordered separately to complete the system configuration.

For information about the Viper Maxi MKII Kit 180KG - 4.5KG/MIN High Flow Drum Pump and its availability in Canada, click the 'Add to Quote' button to request pricing details from Vancouver Rigging Supply Ltd.
