PRODUCT CODE: G-6314 | PART NUMBER: SSGPHO1212

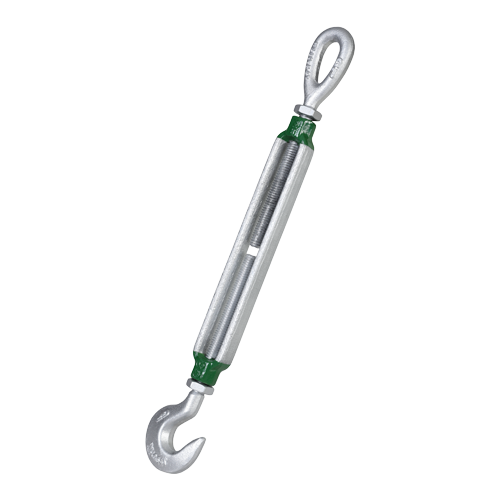

GREEN PIN EYE HOOK TURNBUCKLE 1/2” X 12” (SSGPHO1212)

The Green Pin® Eye Hook Turnbuckle 1/2" X 12" (SSGPHO1212) is an engineered rigging component distributed by Vancouver Rigging Supply Ltd. across Canada. This G-6314 model turnbuckle features eye and hook end-fittings, adhering to ASTM F1145-92 standards.

Key specifications include:

  • Working Load Limit: 0.68 t
  • Take-up: 12" (305 mm)
  • Thread Diameter: 1/2" (13 mm)
  • Closed Length: 2 1/4" (57 mm)
  • Open Length: 29 17/32" (750 mm)
  • Hook Thickness: 3/4" (19 mm)
  • Hook Opening: 5/8" (16 mm)
  • Eye Diameter: 15/32" (12 mm)
  • Eye Inside Width: 23/32" (18 mm)
  • Eye Inside Length: 1 7/16" (37 mm)
  • Net Weight: 2.31 lbs (1.05 kg)

This Green Pin® turnbuckle is constructed from drop-forged high-tensile steel SAE 1035 or 1045, with hot-dip galvanization for corrosion resistance. It operates within a temperature range of -20°C to +200°C and has a minimum breaking load (MBL) of 5 times the working load limit.

The SSGPHO1212 is applicable for both lifting and lashing operations in industries such as construction, maritime, and manufacturing. Its design allows for length adjustment, making it useful for tensioning applications in various rigging setups.

For procurement inquiries, utilize the 'Add to Quote' button to initiate the quote request process with Vancouver Rigging Supply Ltd.

Size (inches): 1/2” X 12”
Weight (lbs): 1.05

Working Load Limit (t): 0.68
