PRODUCT CODE: G-6142 | PART NUMBER: KCUS3110

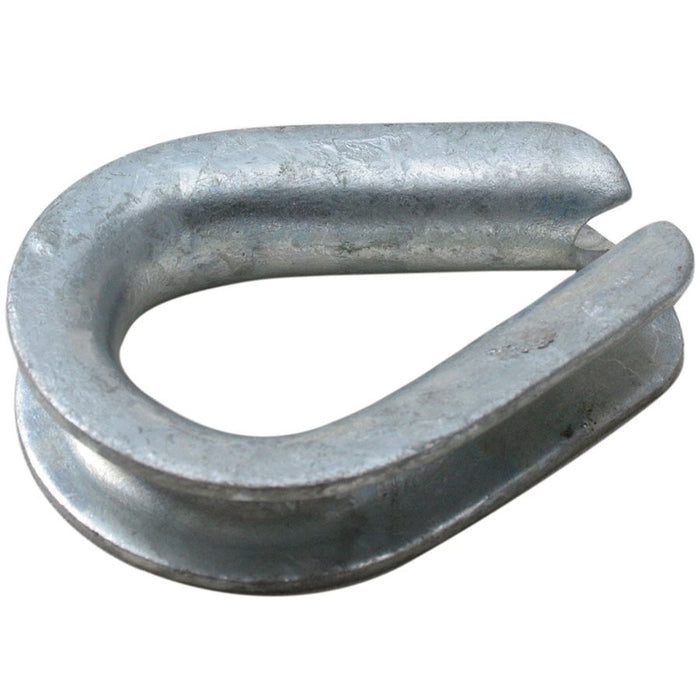

HEAVY DUTY GALVANIZED THIMBLE 7/16" (KCUS3110)

The HEAVY DUTY GALVANIZED THIMBLE 7/16" (KCUS3110) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

  • Diameter Rope: 7/16" (11 mm)
  • Width Groove: 15/32" (12 mm)
  • Length: 3 1/4" (83 mm)
  • Width: 2 3/8" (60 mm)
  • Length Inside: 2 3/8" (60 mm)
  • Width Inside: 1 1/4" (32 mm)
  • Thickness Back: 1/8" (3 mm)
  • Weight per 100 pcs: 30.6 lbs (13.9 kg)

This thimble is designed for use in rigging applications where a high level of strength and durability is required. It is suitable for use in a variety of industries, including construction, manufacturing, and oil and gas.

Certifications:

  • US Federal Specification FF-T-276b type III
  • EN 13411-1
  • 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 7/16" (KCUS3110), please click the Add to Quote button. Vancouver Rigging Supply Ltd. is a Canadian distributor of Green Pin® rigging products, and we are committed to providing our customers with high-quality products and excellent service.

Size (inches): 7/16"
Weight (lbs): n/a

Working Load Limit (t):
