HEAVY DUTY GALVANIZED THIMBLE 5/8" (KCUS3160)

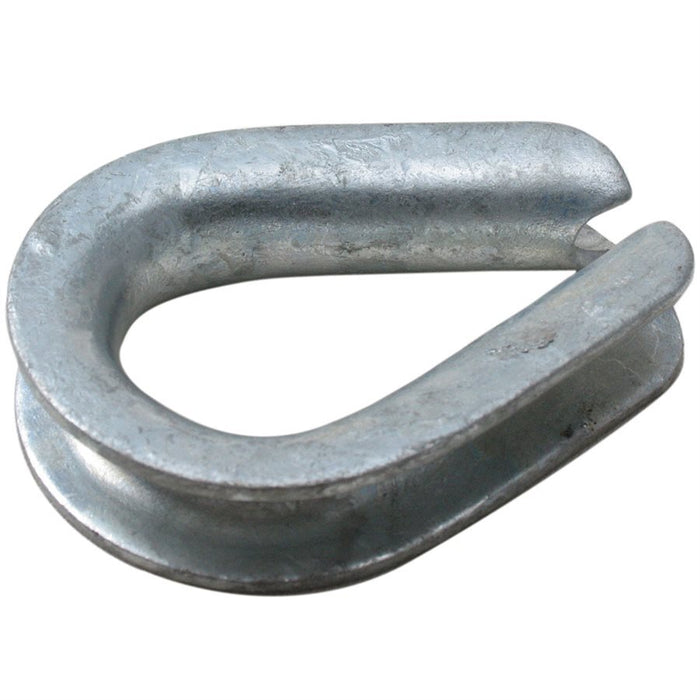

The HEAVY DUTY GALVANIZED THIMBLE 5/8" (KCUS3160) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 5/8" (16 mm)
• Width Groove: 21/32" (16 mm)
• Length: 4 1/4" (108 mm)
• Width: 3 1/8" (79 mm)
• Length Inside: 3 1/4" (83 mm)
• Width Inside: 1 3/4" (44 mm)
• Thickness Back: 5/32" (4 mm)
• Weight per 100 pcs: 65.7 lbs (29.8 kg)

This thimble is designed for use in rigging applications where a high level of strength and durability is required. It is suitable for use in a variety of industries, including construction, mining, and oil and gas.

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 5/8" (KCUS3160), please click the Add to Quote button.
