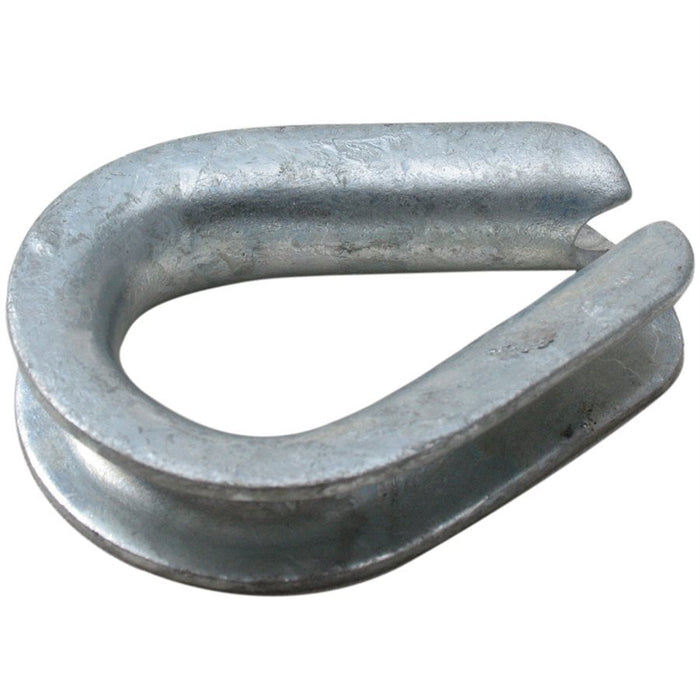

HEAVY DUTY GALVANIZED THIMBLE 3" (KSUS3750)

The HEAVY DUTY GALVANIZED THIMBLE 3"" (KSUS3750) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 3"" (76 mm)
• Width Groove: 3 3/32"" (89 mm)
• Length: 20 1/4"" (514 mm)
• Width: 14"" (356 mm)
• Length Inside: 16 1/2"" (419 mm)
• Width Inside: 7 7/8"" (200 mm)
• Thickness Back: 3/4"" (19 mm)
• Weight per 100 pcs: 8488 lbs (3850 kg)

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use in applications where a high level of strength and durability is required.

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 3"" (KSUS3750), please click on the Add to Quote button. Our team will be happy to assist you with your rigging needs.
