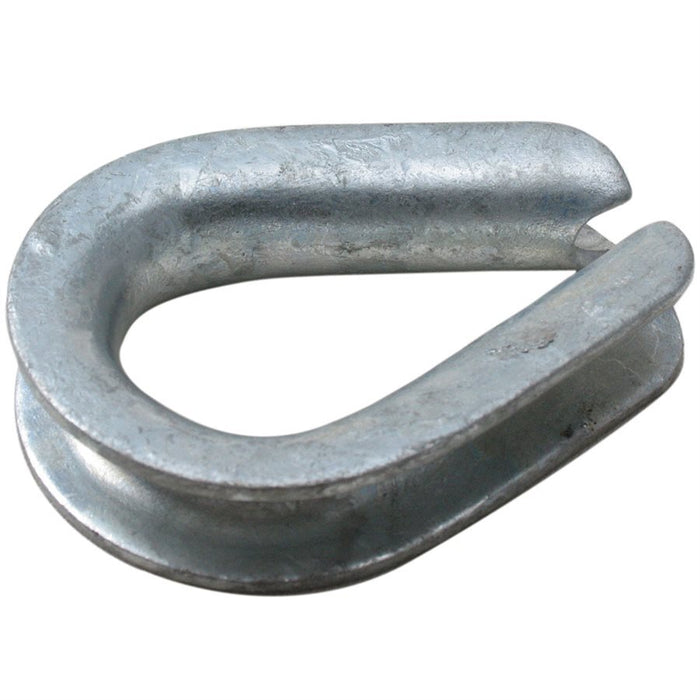

HEAVY DUTY GALVANIZED THIMBLE 3/8" (KCUS3100)

The HEAVY DUTY GALVANIZED THIMBLE 3/8"" (KCUS3100) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 3/8"" (9.5 mm)
• Width Groove: 13/32"" (10.3 mm)
• Length: 2 7/8"" (73 mm)
• Width: 2 1/8"" (54 mm)
• Length Inside: 2 1/8"" (54 mm)
• Width Inside: 1 1/8"" (29 mm)
• Thickness Back: 7/64"" (2.8 mm)
• Weight per 100 pcs: 20.1 lbs (9.1 kg)

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use in applications where a high level of strength and durability is required.

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 3/8"" (KCUS3100), please click on the Add to Quote button. Vancouver Rigging Supply Ltd. is a Canadian distributor of Green Pin^® rigging products, and we are committed to providing our customers with high-quality products and excellent service.
