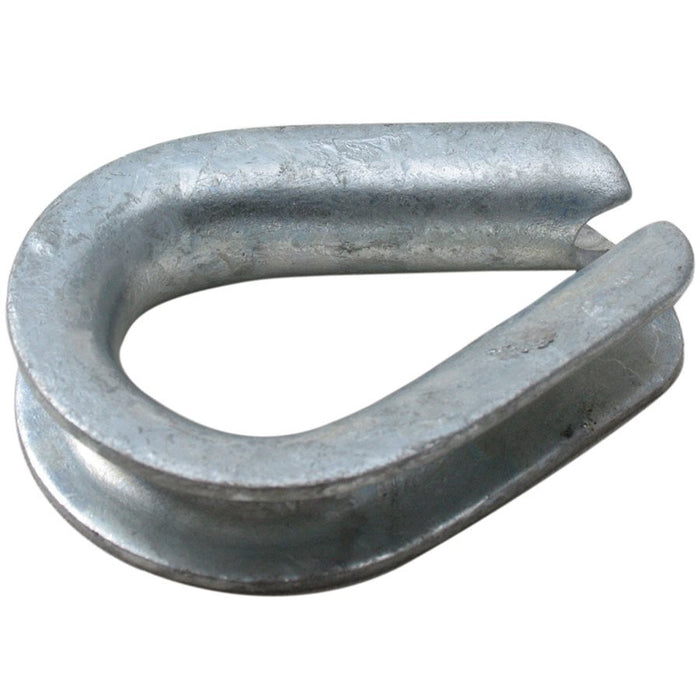

HEAVY DUTY GALVANIZED THIMBLE 1-5/8" (KSUS3420)

The HEAVY DUTY GALVANIZED THIMBLE 1-5/8"" (KSUS3420) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 1 5/8"" (41 mm)
• Width Groove: 1 23/32"" (43 mm)
• Length: 11 1/4"" (286 mm)
• Width: 8 1/8"" (206 mm)
• Length Inside: 8"" (203 mm)
• Width Inside: 4"" (102 mm)
• Thickness Back: 1/2"" (13 mm)
• Weight per 100 pcs: 1612 lbs (732 kg)

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use in applications where a high level of strength and durability is required.

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1-5/8"" (KSUS3420), please click on the Add to Quote button.
