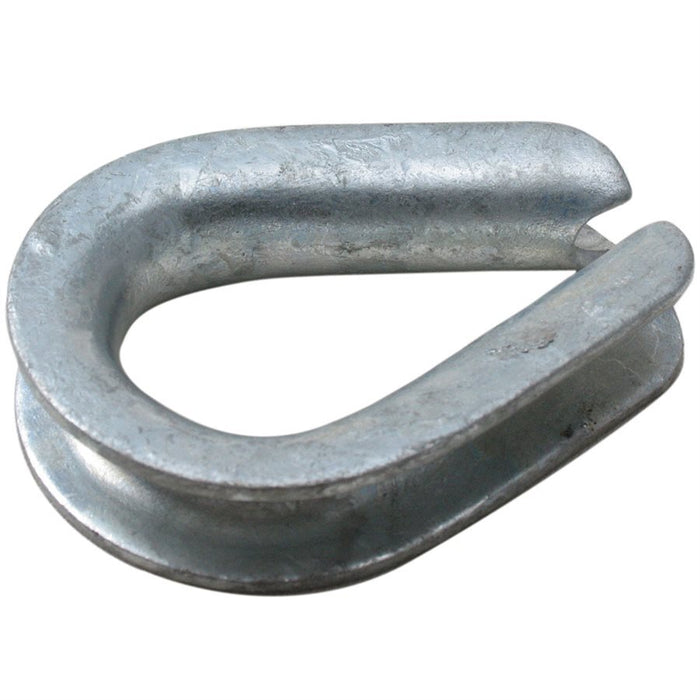

HEAVY DUTY GALVANIZED THIMBLE 1-3/8" - 1-1/2" (KSUS3350)

The HEAVY DUTY GALVANIZED THIMBLE 1-3/8" - 1-1/2" (KSUS3350) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 1 3/8" - 1 1/2" [35 mm - 38 mm]
• Width Groove: 1 7/16" [36 mm]
• Length: 9" [229 mm]
• Width: 7 1/8" [181 mm]
• Length Inside: 6 1/2" [165 mm]
• Width Inside: 3 1/2" [89 mm]
• Thickness Back: 1/2" [13 mm]
• Weight per 100 pcs: 1054 lbs [478 kg]

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• Certification: 2.1

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use with Green Pin^® rigging products and can be used in a variety of applications, including lifting, pulling, and securing loads.

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1-3/8" - 1-1/2" (KSUS3350), please click the Add to Quote button.
