PRODUCT CODE: G-6142 | PART NUMBER: KSUS3450

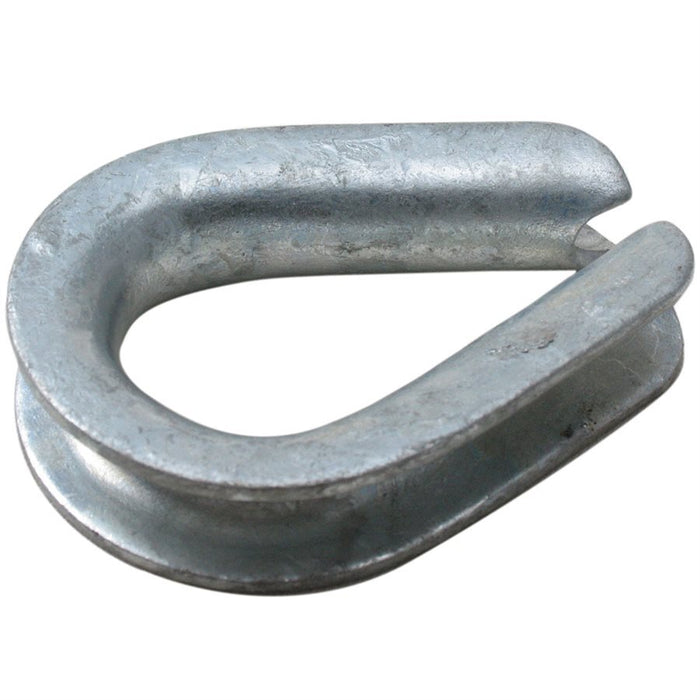

HEAVY DUTY GALVANIZED THIMBLE 1-3/4" (KSUS3450)

The HEAVY DUTY GALVANIZED THIMBLE 1-3/4"" (KSUS3450) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Features:

  • Diameter Rope: 1 3/4""
  • Width Groove: 1 27/32""
  • Length: 12 7/16""
  • Width: 8 1/2""
  • Length Inside: 9""
  • Width Inside: 4 1/2""
  • Thickness Back: 1/2""
  • Weight per 100 pcs: 1715 lbs

This thimble is designed for use in rigging applications where a high level of strength and durability is required. It is suitable for use in a variety of industries, including construction, manufacturing, and oil and gas.

Certifications:

  • US Federal Specification FF-T-276b type III
  • EN 13411-1
  • Certification: 2.1

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1-3/4"" (KSUS3450), please click on the Add to Quote button. Vancouver Rigging Supply Ltd. is a Canadian distributor of Green Pin® rigging products and can provide you with the information you need to complete your project.

Size (inches): 1-3/4"
Weight (lbs): n/a

Working Load Limit (t):
