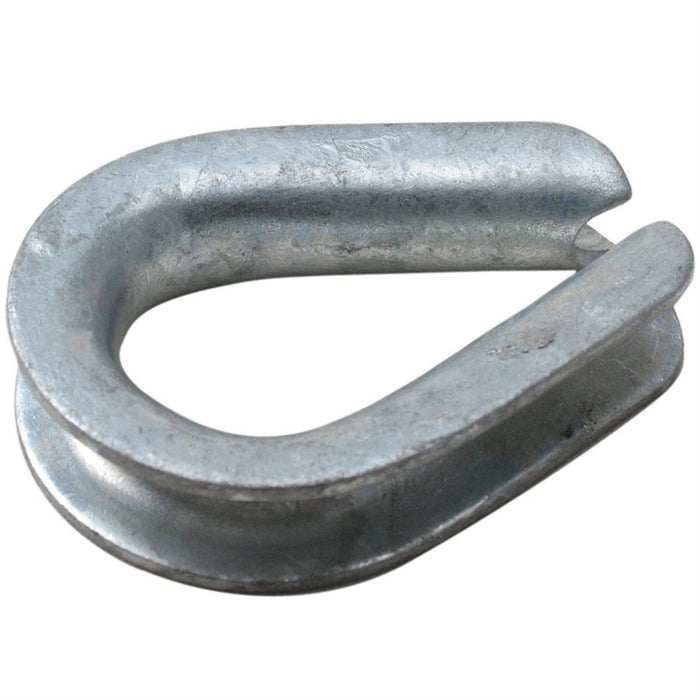

HEAVY DUTY GALVANIZED THIMBLE 1/2" (KCUS3120)

The HEAVY DUTY GALVANIZED THIMBLE 1/2" (KCUS3120) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1 standards. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Specifications:

• Diameter Rope: 1/2" (12.7 mm)
• Width Groove: 17/32" (13.5 mm)
• Length: 3 5/8" (92 mm)
• Width: 2 3/4" (69.9 mm)
• Length Inside: 2 3/4" (69.9 mm)
• Width Inside: 1 1/2" (38.1 mm)
• Thickness Back: 9/64" (3.6 mm)
• Weight per 100 pcs: 43.9 lbs (19.9 kg)

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use with wire rope and other rigging equipment.

Certifications:

• US Federal Specification FF-T-276b type III
• EN 13411-1
• 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1/2" (KCUS3120), please click the Add to Quote button.
