PRODUCT CODE: G-6142 | PART NUMBER: KCUS3280

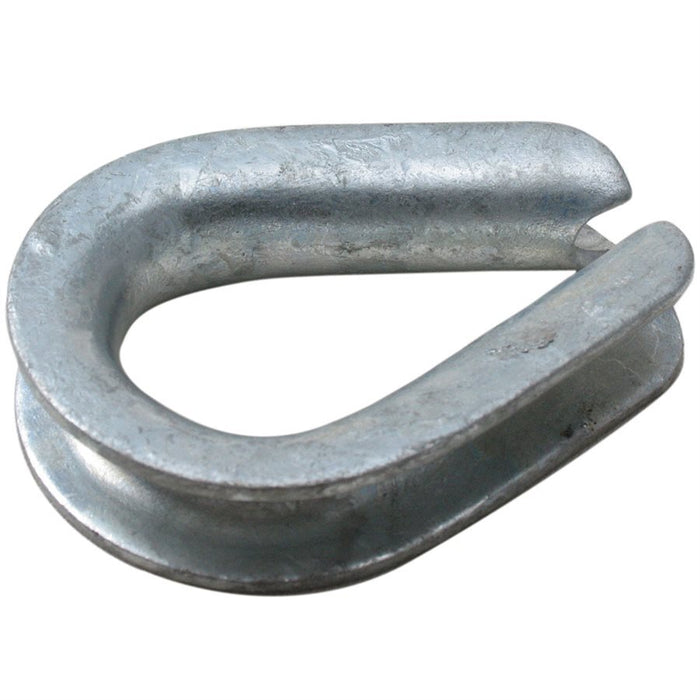

HEAVY DUTY GALVANIZED THIMBLE 1-1/8" - 1-1/4" (KCUS3280)

The HEAVY DUTY GALVANIZED THIMBLE 1-1/8" - 1-1/4" (KCUS3280) is a mild steel thimble designed to meet the requirements of US Federal Specification FF-T-276b type III and EN 13411-1. This thimble features a hot dipped galvanized finish and is suitable for use in various rigging applications.

Key Features:

  • Material: Mild steel
  • Standard: Generally to US Federal Specification FF-T-276b type III and EN 13411-1
  • Finish: Hot dipped galvanized
  • Certification: 2.1

Dimensions:

  • Diameter Rope: 1 1/8" - 1 1/4" (28 mm - 32 mm)
  • Width Groove: 1 3/16" (30 mm)
  • Length: 7" (178 mm)
  • Width: 5 7/8" (150 mm)
  • Length Inside: 5 1/8" (130 mm)
  • Width Inside: 2 7/8" (73 mm)
  • Thickness Back: 1/4" (6 mm)

Weight and Packaging:

  • Weight per 100 pcs: 324 lbs (147 kg)

This thimble is designed for use in various industries, including construction, manufacturing, and oil and gas. It is suitable for use in rigging applications where a high level of strength and durability is required.

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1-1/8" - 1-1/4" (KCUS3280), please click the Add to Quote button.

Size (inches): 1-1/8" - 1-1/4"
Weight (lbs): n/a

Working Load Limit (t):
