PRODUCT CODE: G-6142 | PART NUMBER: KCUS3320

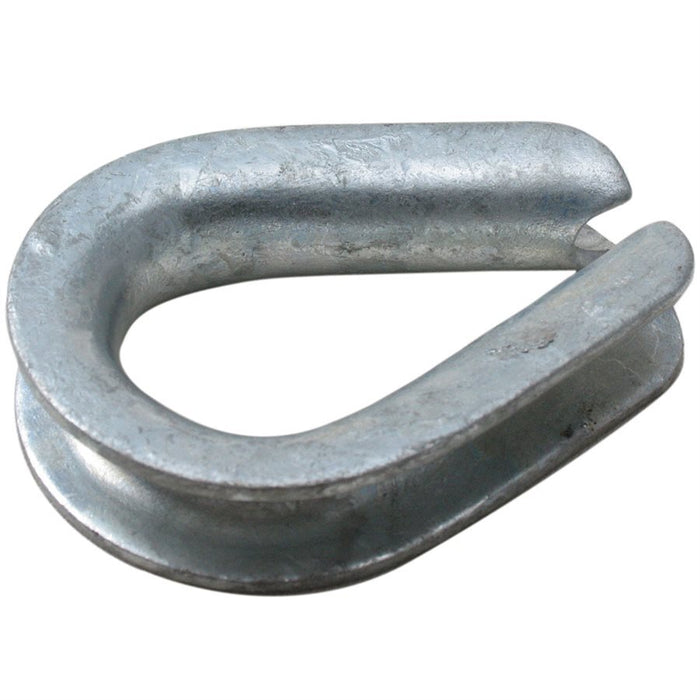

HEAVY DUTY GALVANIZED THIMBLE 1-1/4" - 1-3/8" (KCUS3320)

The HEAVY DUTY GALVANIZED THIMBLE 1-1/4" - 1-3/8" (KCUS3320) is a high-quality rigging product designed for heavy-duty applications. This thimble is manufactured from mild steel and meets the standards of US Federal Specification FF-T-276b type III and EN 13411-1.

Key features of this product include:

  • Diameter rope: 1 1/4" - 1 3/8" (3.18 cm - 3.49 cm)
  • Width groove: 1 5/16" (3.33 cm)
  • Length: 8 1/16" (20.44 cm)
  • Width: 6 15/16" (17.62 cm)
  • Length inside: 6 1/4" (15.88 cm)
  • Width inside: 3 1/2" (8.89 cm)
  • Thickness back: 1/2" (1.27 cm)
  • Weight per 100 pcs: 807 lbs (366.5 kg)

This thimble is hot dipped galvanized, providing a durable and corrosion-resistant finish. It is suitable for use in a variety of industries, including construction, manufacturing, and oil and gas.

Typical applications for this product include:

  • Wire rope assemblies: This thimble is designed for use in wire rope assemblies, providing a secure and reliable connection point.
  • Rigging systems: This product is suitable for use in rigging systems, including cranes, hoists, and winches.
  • Material handling: This thimble can be used in material handling applications, such as lifting and moving heavy loads.

Certifications for this product include:

  • US Federal Specification FF-T-276b type III
  • EN 13411-1
  • 2.1 Certification

To request a quote for the HEAVY DUTY GALVANIZED THIMBLE 1-1/4" - 1-3/8" (KCUS3320), please click the Add to Quote button.

Size (inches): 1-1/4" - 1-3/8"
Weight (lbs): n/a

Working Load Limit (t):
