PRODUCT CODE: E-7930 | PART NUMBER: OHBV3007

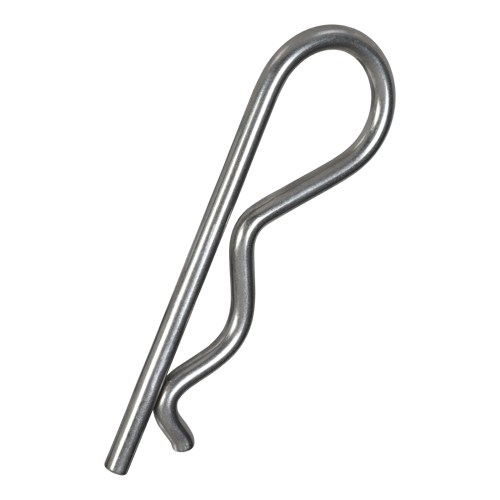

STAINLESS STEEL, SINGLE TYPE SPRING PIN 9/32" X 5-1/8 (OHBV3007)
The Green Pin Stainless Steel, Single Type Spring Pin (RVOHBV3007) is a stainless steel spring pin designed for use in various rigging applications. This spring pin is an accessory to a variety of shackles, turnbuckles, and sockets, and is available with a diameter ranging from 2 up to 8 mm.
This pin features a diameter of 9/32"" (7 mm) and a length of 5 1/8"" (105 mm). The C diameter measures 1 3/16"" (30 mm), while the D diameter range is 1 3/32 - 1 25/32"" (28 - 45 mm). The net weight of the spring pin is 0.08 kg (0.18 lbs).
It is made from AISI 304 material and features a polished finish. It is certified to 2.1 standards.
Key Features:
- Material: AISI 304 stainless steel
- Finish: Polished
- Certification: 2.1
- Diameter: 9/32"" (7 mm)
- Length: 5 1/8"" (105 mm)
- C Diameter: 1 3/16"" (30 mm)
- D Diameter Range: 1 3/32 - 1 25/32"" (28 - 45 mm)
- Net Weight: 0.08 kg (0.18 lbs)
It is commonly used in various industries, including construction, manufacturing, and oil and gas. It is designed to provide a secure and reliable connection in rigging applications.
To request a quote for the Green Pin Stainless Steel, Single Type Spring Pin (RVOHBV3007), please click the Add to Quote button.
Size (inches): 9/32" X 5-1/8
Weight (lbs): 0.18
Working Load Limit (t):
