PRODUCT CODE: G-6423 | PART NUMBER: SKGOW040SB

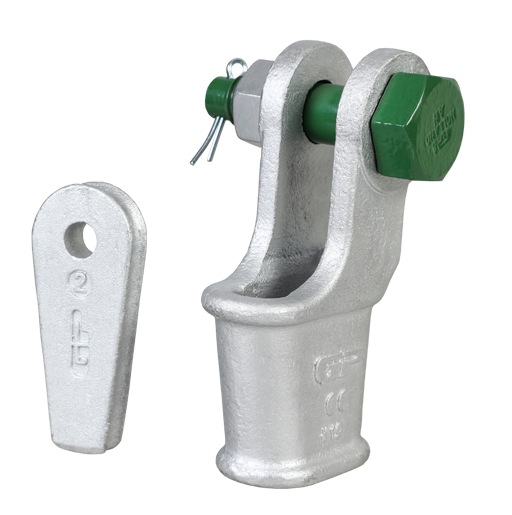

OPEN WEDGE SOCKET WITH SAFETY BOLT 1-5/8" (SKGOW040SB)
The Green Pin® Open Wedge Socket with Safety Bolt 1-5/8" (SKGOW040SB) is a high-performance rigging component engineered for heavy-duty applications across Canada. This G-6423 model, available through Vancouver Rigging Supply Ltd., features a double safety mechanism with a split pin and safety bolt, preventing unintended pin disengagement.
Key specifications include:
- Wire rope diameter: 1 5/8" (41.28 mm)
- Minimum Breaking Load (MBL): 170t
- Overall length: 22 27/32" (580 mm)
- Length to center pin: 19 11/16" (500 mm)
- Width: 9 19/32" (243.5 mm)
- Internal width: 3" (76.2 mm)
- Pin diameter: 3 1/32" (77 mm)
- Side plate thickness: 1 5/16" (33.3 mm)
- Eye diameter: 6 5/16" (160.3 mm)
- Net weight: 161 lbs (73 kg)
Constructed from high tensile steel with hot-dipped galvanization, this socket operates in temperatures ranging from -40°C to +200°C. It adheres to EN 13411-6 standards, ensuring compliance with industrial regulations.
Industries utilizing this open wedge socket include:
- Construction
- Maritime operations
- Oil and gas extraction
- Mining
- Heavy machinery manufacturing
The SKGOW040SB is designed for applications requiring secure termination of large diameter wire ropes in challenging environments. Its galvanized finish provides corrosion resistance, making it applicable for both onshore and offshore operations.
To inquire about the Green Pin® Open Wedge Socket with Safety Bolt 1-5/8" for your Canadian projects, click the 'Add to Quote' button on this page.
Size (inches): 1-5/8"
Weight (lbs): 161.0
Working Load Limit (t): MBL 170t
