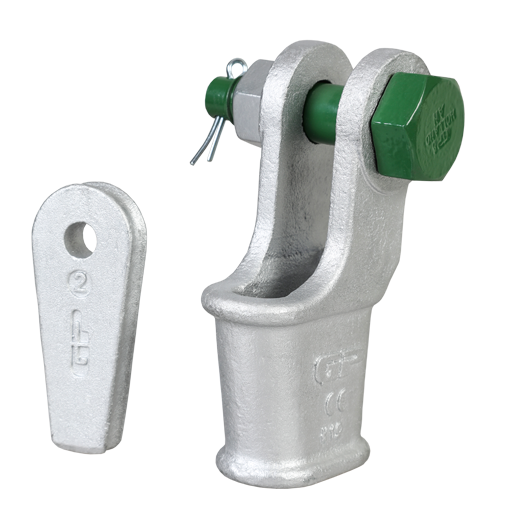

OPEN WEDGE SOCKET WITH SAFETY BOLT 1-3/8" (SKGOW035SB)

The Green Pin® Open Wedge Socket with Safety Bolt 1-3/8" (SKGOW035SB) is a high-performance rigging component designed for use in Canadian industrial operations. This socket, part of the G-6423 series, offers dual safety features with a split pin and safety bolt configuration to prevent unintended pin disengagement.

Key specifications include:

• Working Load Limit: 125t MBL
• Wire Rope Diameter: 1 3/8" (35 mm)
• Overall Length: 18 21/32" (474 mm)
• Length to Center Pin: 15 3/4" (400 mm)
• Width: 8 1/2" (216 mm)
• Internal Width: 2 23/32" (69 mm)
• Pin Diameter: 2 9/16" (65 mm)
• Side Plate Thickness: 1 3/32" (28 mm)
• Eye Diameter: 5 13/16" (148 mm)
• Net Weight: 92.6 lbs (42 kg)

Constructed from high tensile steel and hot-dip galvanized, this socket maintains functionality in temperatures ranging from -40°C to +200°C. It adheres to EN 13411-6 standards, ensuring compliance with international rigging regulations.

The SKGOW035SB is applicable in various Canadian industries, including:

• Construction: For heavy lifting operations on high-rise buildings and infrastructure projects
• Maritime: In shipyard operations and offshore platforms
• Mining: For equipment assembly and material handling
• Forestry: In logging operations and timber transport

To inquire about the Green Pin® Open Wedge Socket with Safety Bolt 1-3/8" (SKGOW035SB) for your Canadian operations, select the 'Add to Quote' button on this page.
