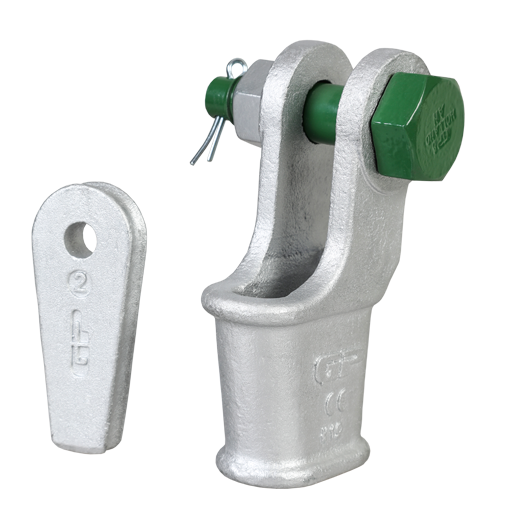

OPEN WEDGE SOCKET WITH SAFETY BOLT 1/2" (SKGOW013SB)

The Green Pin® Open Wedge Socket with Safety Bolt 1/2" (SKGOW013SB) is a high tensile steel rigging component distributed by Vancouver Rigging Supply Ltd. for the Canadian market. This G-6423 model is engineered for wire ropes with a 1/2" (13 mm) diameter and features a minimum breaking load of 20t.

Key specifications include:

• Length: 6 7/8" (175 mm)
• Length to center pin: 5 3/4" (146 mm)
• Width: 3 31/32" (101 mm)
• Internal width: 31/32" (25 mm)
• Pin diameter: 31/32" (25 mm)
• Side plate thickness: 15/32" (12 mm)
• Eye diameter: 2 1/4" (57 mm)
• Net weight: 5.29 LBS (2.4 kg)

This open wedge socket incorporates a safety bolt and split pin, providing dual protection against accidental pin unscrewing. The hot-dipped galvanized finish contributes to its durability in various environmental conditions.

The SKGOW013SB is manufactured to meet EN 13411-6 standards and operates within a temperature range of -40°C to +200°C. Its design makes it applicable for industries such as construction, marine operations, and heavy machinery.

To inquire about this Green Pin® Open Wedge Socket for your rigging requirements in Canada, use the 'Add to Quote' button on this page.
