PRODUCT CODE: G-6423 | PART NUMBER: SKGOW038SB

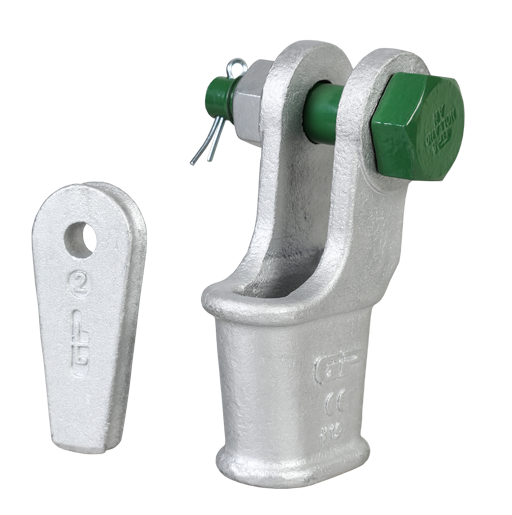

OPEN WEDGE SOCKET WITH SAFETY BOLT 1-1/2" (SKGOW038SB)
The Green Pin® Open Wedge Socket with Safety Bolt 1-1/2" (SKGOW038SB) is a high-performance rigging component designed for heavy-duty applications across Canadian industries. This socket, part of the G-6423 series, features a double safety mechanism with a split pin and safety bolt to prevent unintended pin disengagement.
Engineered from high tensile steel and hot-dip galvanized, this socket offers durability in various environmental conditions. It operates effectively within a temperature range of -40°C to +200°C, adhering to EN 13411-6 standards.
Key Specifications:- Working Load Limit: 150t MBL
- Wire Rope Diameter: 1 1/2" (38 mm)
- Overall Length: 20 3/4" (527 mm)
- Length to Center Pin: 17 23/32" (450 mm)
- Width: 9 1/16" (230 mm)
- Internal Width: 3" (76 mm)
- Pin Diameter: 2 3/4" (70 mm)
- Side Plate Thickness: 1 3/16" (30 mm)
- Eye Diameter: 6 1/32" (153 mm)
- Net Weight: 115 LBS (52 kg)
This Green Pin® Open Wedge Socket is applicable in construction, marine, and industrial sectors where substantial load-bearing capacity is required. Its design allows for efficient wire rope termination in heavy lifting operations.
For Canadian businesses seeking this Green Pin® Open Wedge Socket, click the 'Add to Quote' button to request pricing information and availability.
Size (inches): 1-1/2"
Weight (lbs): 115.0
Working Load Limit (t): MBL 150t
