PRODUCT CODE: S-6414 | PART NUMBER: SKZSW014

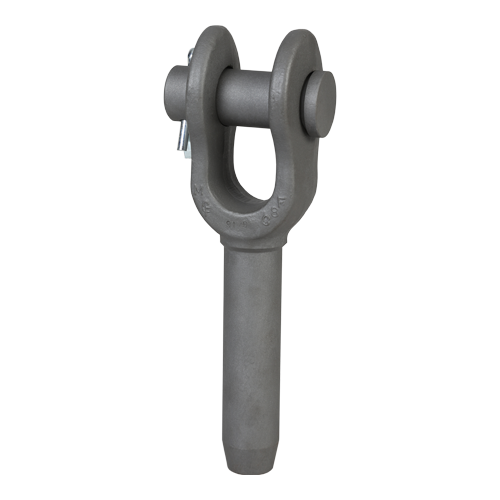

OPEN SWAGE SOCKET WITH COTTER PIN 9/16" (SKZSW014)

The Green Pin® Open Swage Socket with Cotter Pin 9/16" (SKZSW014) is a high tensile steel rigging component designed for wire rope applications. This S-6414 model, available through Vancouver Rigging Supply Ltd., caters to Canadian industries requiring robust wire rope terminations.

Key Specifications:

  • Rope Diameter: 9/16" (14.29 mm)
  • Socket Dimensions: 8 1/8" (206.38 mm) length, 5/8" (15.88 mm) thickness
  • Eye Width: 2 1/2" (63.5 mm)
  • Pin Diameter: 1 3/16" (30.16 mm)
  • Weight: 4.94 lbs (2.24 kg)

Material and Construction:

  • Composition: Drop forged steel C-1035
  • Finish: Self-colored
  • Design: Open type with spring pin

Application Guide:

  • Industries: Mining, construction, marine, oil & gas
  • Use Cases: Crane operations, heavy lifting, mooring systems

Installation Parameters:

  • Min. Diameter After Swage: 1.115" (28.32 mm)
  • Max. Diameter After Swage: 1.257" (31.93 mm)
  • Diameter Before Swage: 1.16" (29.46 mm)
  • Inside Diameter: 0.609" (15.47 mm)

This Green Pin® product adheres to stringent quality standards, ensuring compatibility with Canadian safety regulations. For procurement inquiries, use the 'Add to Quote' button to initiate the quotation process.

Size (inches): 9/16"
Weight (lbs): 4.66

Working Load Limit (t): N/A
