PRODUCT CODE: S-6414 | PART NUMBER: SKZSW022

OPEN SWAGE SOCKET WITH COTTER PIN 7/8" (SKZSW022)

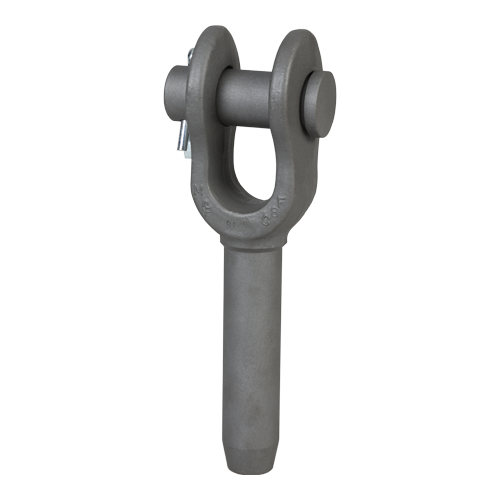

Green Pin® Open Swage Socket with Cotter Pin 7/8" (SKZSW022)

The Green Pin® Open Swage Socket with Cotter Pin, part number SKZSW022, is a high-tensile steel rigging component designed for 7/8" wire rope applications. This S-6414 model, available through Canadian distribution channels, offers precise specifications for industrial rigging needs.

Technical Specifications:

  • Rope diameter: 7/8" (22.2 mm)
  • Socket diameter before swage: 1.55" (39.4 mm)
  • Socket diameter after swage: 1.49" to 1.7" (37.8 mm to 43.2 mm)
  • Inside diameter: 0.938" (23.8 mm)
  • Pin diameter: 1 5/8" (41.3 mm)
  • Length: 11 5/8" (295.3 mm)
  • Thickness: 15/16" (23.8 mm)
  • Inside width: 1 3/4" (44.5 mm)
  • Eye width: 3 3/8" (85.7 mm)
  • Net weight: 12 lbs (5.4 kg)

Material and Construction:

Fabricated from drop forged C-1035 steel, this open swage socket exhibits a self-colored finish. The design incorporates a cotter pin for additional security in load-bearing applications.

Applications:

This Green Pin® open swage socket finds use in various industries across Canada, including:

  • Construction sites for heavy lifting operations
  • Offshore platforms in marine environments
  • Mining operations for equipment hoisting
  • Shipyards for cargo handling and vessel maintenance

Installation and Usage:

When installing, ensure the wire rope diameter matches the socket specifications. Swage the fitting according to the manufacturer's guidelines, maintaining the post-swage diameter between 1.49" and 1.7". Always verify the cotter pin is properly inserted and secured before use.

Safety Considerations:

Adhere to all safety protocols and load ratings when using this rigging component. Regular inspections are necessary to maintain operational integrity. Replace the socket if any signs of wear, corrosion, or deformation are detected.

To obtain pricing information or place an order for the Green Pin® Open Swage Socket with Cotter Pin (SKZSW022), click the 'Add to Quote' button on this page.

Size (inches): 7/8"
Weight (lbs): 11.9

Working Load Limit (t): N/A
