PRODUCT CODE: S-6414 | PART NUMBER: SKZSW011
OPEN SWAGE SOCKET WITH COTTER PIN 7/16" (SKZSW011)

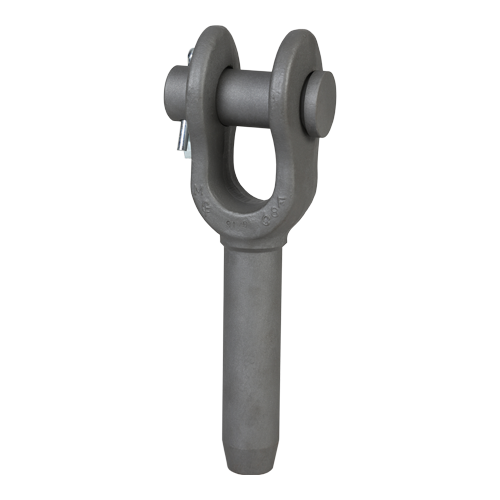

Green Pin® Open Swage Socket with Cotter Pin 7/16" (SKZSW011)
The Green Pin® Open Swage Socket with Cotter Pin, part number SKZSW011, is a precision-engineered rigging component designed for 7/16" wire rope applications. This product, available through Vancouver Rigging Supply Ltd., meets the exacting standards required for industrial rigging operations across Canada.
Technical Specifications
- Product Code: S-6414
- Wire Rope Diameter: 7/16" (11.11 mm)
- Material: Drop forged steel C-1035
- Finish: Self-colored
- Net Weight: 2.48 lbs (1.12 kg)
Dimensional Details
- Length: 6 11/16" (169.86 mm)
- Thickness: 1/2" (12.7 mm)
- Inside Width: 1" (25.4 mm)
- Eye Width: 2" (50.8 mm)
- Pin Diameter: 1" (25.4 mm)
- Inside Diameter: 0.484" (12.29 mm)
Swage Specifications
- Diameter Before Swage: 0.91" (23.11 mm)
- Min. Diameter After Swage: 0.865" (21.97 mm)
- Max. Diameter After Swage: 0.982" (24.94 mm)
Applications and Industries
This Green Pin® Open Swage Socket is utilized in various sectors across Canada, including:
- Construction and infrastructure projects
- Maritime and offshore operations
- Mining and resource extraction
- Heavy equipment manufacturing
- Renewable energy installations
Product Features
- Open Design: Allows for visual inspection of the wire rope termination
- Cotter Pin: Provides secure pin retention
- High Tensile Steel Construction: Ensures durability in demanding environments
- Compatibility: Engineered for use with 7/16" diameter wire rope
The Green Pin® Open Swage Socket with Cotter Pin is manufactured to meet rigorous industry standards. It is designed to withstand the environmental conditions encountered in Canadian worksites, from coastal areas to northern territories.
For procurement inquiries or to obtain this Green Pin® Open Swage Socket for your rigging needs in Canada, click the 'Add to Quote' button to initiate the quotation process with Vancouver Rigging Supply Ltd.
Size (inches): 7/16"
Weight (lbs): 2.45
Working Load Limit (t): N/A
