PRODUCT CODE: S-6414 | PART NUMBER: SKZSW016

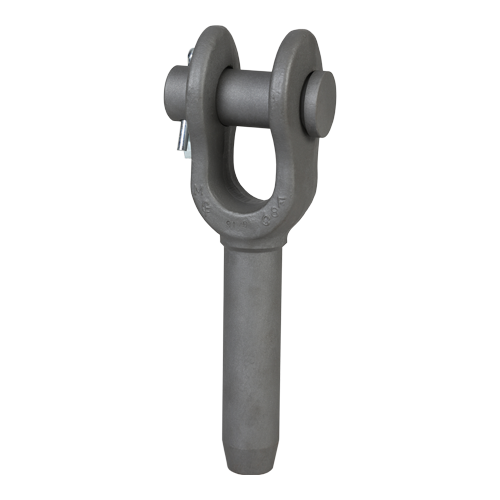

OPEN SWAGE SOCKET WITH COTTER PIN 5/8" (SKZSW016)

The Green Pin® Open Swage Socket with Cotter Pin 5/8" (SKZSW016) is a high tensile steel component designed for wire rope termination in industrial rigging applications across Canada. This S-6414 model, crafted from drop forged steel C-1035, offers a self-colored finish and accommodates 5/8" (16 mm) diameter wire rope.

Key Specifications:

  • Swage Dimensions: Min. diameter after swage: 1.115" (28.32 mm), Max. diameter after swage: 1.257" (31.93 mm)
  • Internal Measurements: Inside diameter: 0.672" (17.07 mm), Inside width: 1 1/4" (31.75 mm)
  • Pin Diameter: 1 3/16" (30.16 mm)
  • Overall Dimensions: Length: 8 1/8" (206.38 mm), Thickness: 5/8" (15.88 mm), Eye width: 2 1/2" (63.5 mm)
  • Weight: 4.61 lbs (2.09 kg)

Applications:

  • Marine Industry: Offshore platforms, ship rigging
  • Construction: Crane operations, heavy lifting
  • Mining: Equipment hoisting, cable terminations
  • Forestry: Logging operations, cable yarding systems

The Green Pin® Open Swage Socket CP series adheres to industry standards for safety and performance. Its open design allows for visual inspection of the wire rope termination, contributing to maintenance protocols.

For procurement inquiries regarding the SKZSW016 Open Swage Socket or other Green Pin® rigging products distributed in Canada, click the 'Add to Quote' button to initiate a quotation request.

Size (inches): 5/8"
Weight (lbs): 4.55

Working Load Limit (t): N/A
