PRODUCT CODE: S-6414 | PART NUMBER: SKZSW008

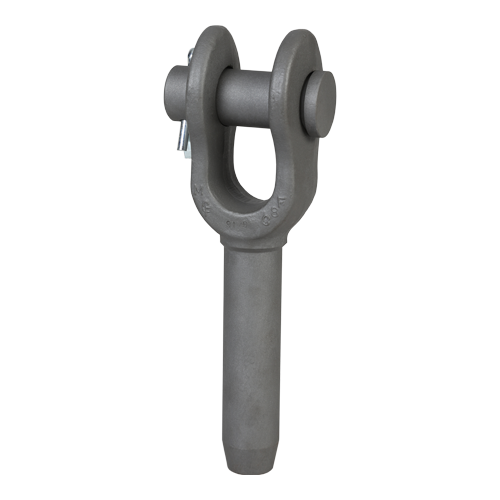

OPEN SWAGE SOCKET WITH COTTER PIN 5/16" (SKZSW008)
The Green Pin® Open Swage Socket with Cotter Pin 5/16" (SKZSW008) is a high-tensile steel component designed for wire rope terminations in rigging applications across Canada. This S-6414 model, available from Vancouver Rigging Supply Ltd., accommodates 5/16" diameter rope and features precise engineering for consistent performance.
Key Specifications:
- Material: Drop forged steel C-1035
- Finish: Self-coloured
- Dimensions: 5 5/16" length, 13/32" thickness, 13/16" inside width
- Eye Width: 1 5/8"
- Pin Diameter: 13/16"
- Net Weight: 1.29 lbs (0.59 kg)
Swage Specifications:
- Diameter Before Swage: 0.71" (18 mm)
- Min. Diameter After Swage: 0.678" (17.2 mm)
- Max. Diameter After Swage: 0.77" (19.6 mm)
This open swage socket is used in various industries including construction, marine, and offshore operations. It provides a permanent termination for wire ropes in lifting and pulling applications. The cotter pin design offers additional security for the connection.
Engineers and riggers in Canadian industries can rely on this Green Pin® product for applications requiring precise wire rope terminations. Its construction meets industry standards for strength and durability in demanding environments.
For procurement of the Green Pin® Open Swage Socket with Cotter Pin 5/16" (SKZSW008), click the 'Add to Quote' button to initiate your request with Vancouver Rigging Supply Ltd.
Size (inches): 5/16"
Weight (lbs): 1.26
Working Load Limit (t): N/A
