OPEN SWAGE SOCKET WITH COTTER PIN 3/4" (SKZSW019)

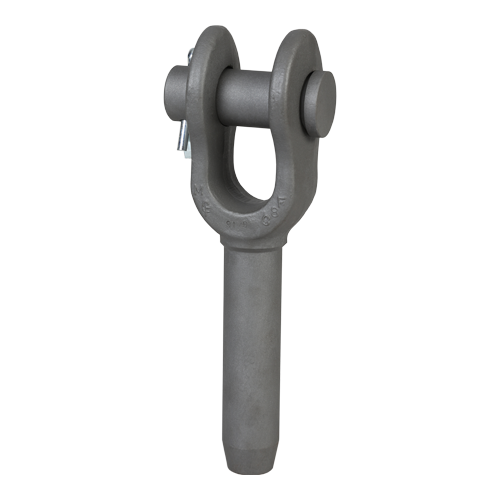

Green Pin® Open Swage Socket with Cotter Pin 3/4" (SKZSW019)

The Green Pin® Open Swage Socket with Cotter Pin, part number SKZSW019, is a high-tensile steel rigging component designed for 3/4" wire rope applications. This product, available through Vancouver Rigging Supply Ltd. for Canadian distribution, adheres to strict engineering standards for industrial use.

Technical Specifications:

• Product Code: S-6414
• Wire Rope Diameter: 3/4" (19 mm)
• Socket Dimensions:
  • Length: 10" (254 mm)
  • Width Inside: 1 1/2" (38 mm)
  • Eye Width: 3" (76 mm)
  • Thickness: 3/4" (19 mm)
• Pin Diameter: 1 3/8" (35 mm)
• Net Weight: 7.98 lbs (3.62 kg)

Swaging Specifications:

• Diameter Before Swage: 1.42" (36 mm)
• Minimum Diameter After Swage: 1.365" (34.7 mm)
• Maximum Diameter After Swage: 1.545" (39.2 mm)

Material and Construction:

Manufactured from drop forged C-1035 steel, this open swage socket features a self-coloured finish for corrosion resistance. The design incorporates a cotter pin for added security in load-bearing applications.

Applications:

This Green Pin® Open Swage Socket is commonly used in:

• Construction projects
• Marine operations
• Mining equipment
• Industrial lifting systems
• Offshore platforms

Compliance and Safety:

The SKZSW019 meets industry standards for load-bearing capacity and structural integrity. Users must adhere to proper swaging techniques and load limits to maintain operational safety.

Procurement:

For Canadian companies seeking this Green Pin® Open Swage Socket, click the 'Add to Quote' button to initiate a quote request with Vancouver Rigging Supply Ltd.
